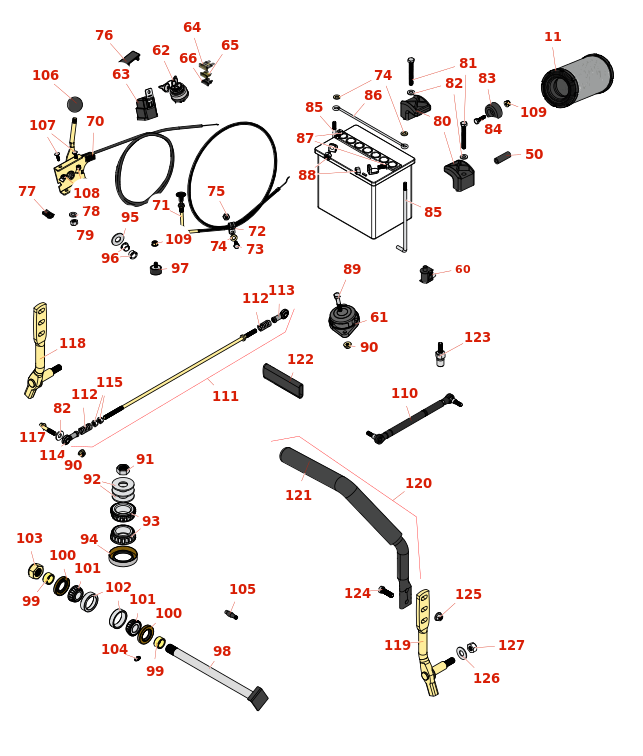

Toro Sand Pro 2040Z Traction Unit

Vælg din tegning her

1 tegninger til rådighed

#11

Element - air cleaner

R108-3811

48,06 €*

#11

Kawasaki element-air filter

RAK11013-7048

85,44 €*

#50

Hose - fuel

R106-5317

4,38 €*

#60

Switch - operator presence

R150229

49,21 €*

#61

Switch - kill - seat

R92-6282

28,11 €*

#62

Switch - key 6 lead

R83-0020

67,80 €*

#62

Ignition - key set/2

R343060

6,76 €*

#63

Relay - 30 amp

R99-7430

26,61 €*

#64

Fuse - 10 amp

R218-578

3,52 €*

#65

Fuse - 15 amp

R150812

5,86 €*

#66

Fuse - 20 amp

R150813

5,52 €*

#70

Throttle control assy

R110-5727

132,34 €*

#71

Choke control

R115-2753

95,77 €*

#72

Clip-closed, insul

R2412-72

1,71 €*

#73

Bolt - hex hd 1/4-20 x 5/8

R400106

0,73 €*

#74

Washer - flat 1/4 yellow

R3256-22

0,40 €*

#75

Locknut - esna 1/4-20

R301504

0,48 €*

#76

Plug-hole

R99-7420

7,44 €*

#77

Clip - 1/4-20 u nut

R107069

2,31 €*

#78

Washer - lock 3/8

R3254-6

0,13 €*

#79

Nut - 3/8-24

R3219-3

0,57 €*

#80

Clamp

R107-4543

16,41 €*

#81

Bolt - hx hd 8-1.25 x 65mm

R151379

3,86 €*

#82

Washer - flat 5/16 sae

R453009

0,40 €*

#83

Rubber bumper

R94-4548

6,92 €*

#84

Bolt - hex hd 1/4-20 x 1

RP1471-1

1,06 €*

#85

Post - battery - stainless

R100-6435

15,10 €*

#86

Rod - battery

R100-6434

15,77 €*

#87

Bolt - hex hd 5/16-18 x 3/4

R322-3

1,63 €*

#88

Nut - 5/16-18 y/zinc plated

R443106

0,53 €*

#89

Bolt - hex hd 5/16-18 x 1-3/4

R101344

3,32 €*

#90

Locknut - 5/16-18 flanged y/zinc

R104-8300

0,80 €*

#91

Nut - nylon lock 3/4-10 gr 8

R3296-51

7,24 €*

#92

Washer - belleville

R108-9957

12,51 €*

#93

Tapered bearing cone

R254-106

16,59 €*

#94

Seal

R69-2980

20,59 €*

#95

Washer-flat

R106-9888

1,36 €*

#96

Nyliner bushing

R256-257

5,86 €*

#97

Bumper - rubber

R240-14

15,00 €*

#98

Bolt - steering caster fork

R5-3934

71,70 €*

#99

Spacer

R74-3730

8,34 €*

#100

Seal

R253-111

11,14 €*

#101

Tapered bearing cone

R254-78

9,28 €*

#102

Cup - bearing

R254-79

8,46 €*

#103

Locknut - 3/4-16 heavy jam rh thread

R3296-67

6,39 €*

#104

Fitting - grease

R302-5

1,13 €*

#105

Stem - valve w/ cap

R232-27

10,09 €*

#106

Knob

R233-42

11,52 €*

#107

Bolt- carriage 10

R3229-34

3,05 €*

#108

Nut - #10 lock

R3296-2

1,42 €*

#109

Locknut - 1/4-20 esna flanged

R104-7201

1,83 €*

#110

Damper control

R116-0027

134,20 €*

#111

Pump linkage rear assembly

R109-8107

93,05 €*

#113

Balljoint - lh

R1-633152

29,15 €*

#114

Balljoint - rh

R1-543017

29,15 €*

#115

Nut - 5/16-24 zinc

R3219-2

0,63 €*

#117

Bolt - hx hd fl 5/16-18 x 1 1/2

R115-1794

3,63 €*

#118

Lever - motion control - rh

R116-0039

68,46 €*

#119

Lever - motion control - lh

R116-0040

67,92 €*

#120

Lh steering handle assy

R109-6590

138,87 €*

#121

Grip - control lever - foam

R109-5668

29,80 €*

#122

Grip - lever - foam

R1-633268

20,42 €*

#123

Pin - spring anchor

R132-4724

34,85 €*

#124

Bolt - hex hd 3/8-16 x 1-1/4

R400264

1,38 €*

#125

Locknut - 3/8-16 nylon flanged

R104-8301

1,39 €*

#126

Washer - flat 1/2

R453017

0,83 €*

#127

Nut - 1/2-13 hex jam zinc

R443818

1,11 €*
