Jacobsen Fairway Frame Parts

Wählen Sie hier Ihre Zeichnung

2 Zeichnungen verfügbar

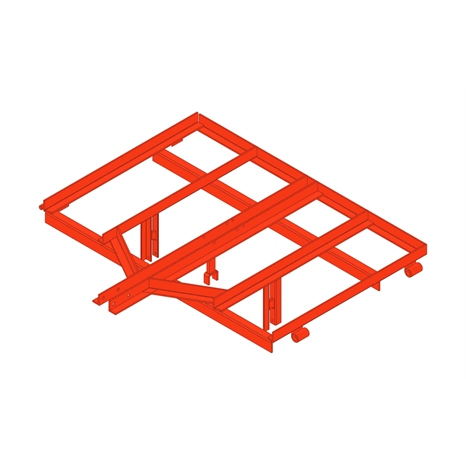

Frame - b incl. hardware

R500100

2.823,29 €*

Frame - er incl hardware

R500102R

1.642,79 €*

Frame - el incl hardware

R500101L

1.642,79 €*

Frame - d incl hardware

R500103

3.376,24 €*

Frame - special d assy rh

R500108

2.922,36 €*

Frame - special d assy lh

R500109

2.786,82 €*

#10

Hitch - ball assy

R110466

66,13 €*

#11

Post - pull for yoke

R110467

70,01 €*

#12

Yoke - pull

R110469

335,13 €*

#13

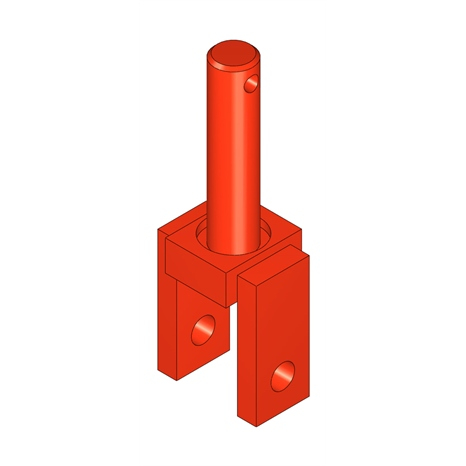

Jaw - w/ stem

R110480

136,79 €*

#14

Handle

R110536

819,75 €*

#15

Latch assy - over center

R110537

783,49 €*

#16

Frame - d

R116494

2.930,31 €*

#17

Frame - b

R119061

1.677,17 €*

#18

Frame - e left

R126097

1.127,47 €*

#18

Frame - e right

R126096

440,88 €*

#19

Hitch - includes hardware

R129925

215,05 €*

#20

Extension - hitch

R153005

157,99 €*

#21

Post - pull fits d frame

R153249

92,47 €*

#22

Post - unit weldment

R153250

81,93 €*

#23

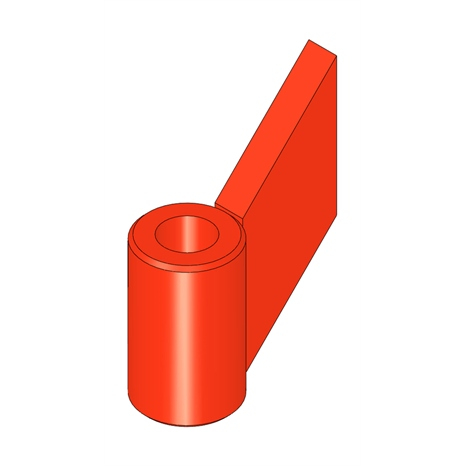

Hinge - side

R158734

54,50 €*

#24

Spring - unit tension

R316724

23,06 €*

#25

Latch - hinge

R317008

8,88 €*

#26

Bolt

R318005

35,05 €*

#27

Bushing - rubber

R318006

7,21 €*

#28

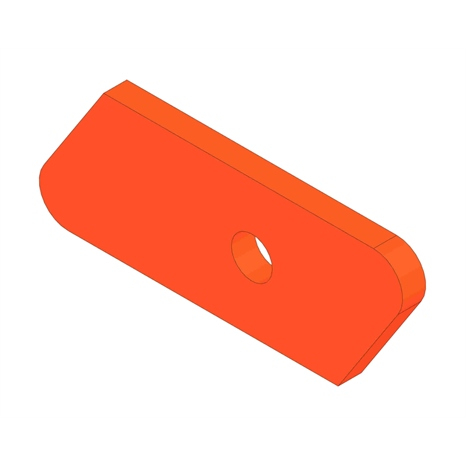

Plate - pull post support

R318970

11,43 €*

#29

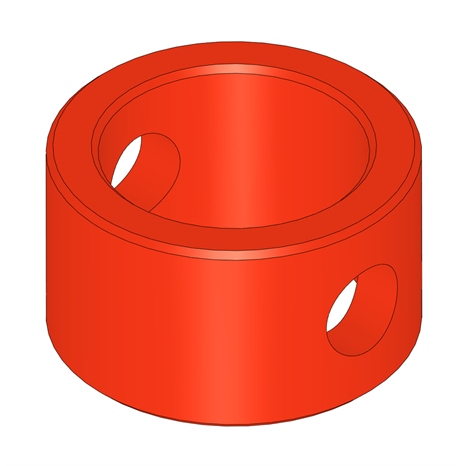

Collar

R318979

53,30 €*

#30

Link - over center latch

R318983

16,60 €*

#31

Spacer - over center latch

R318985

8,06 €*

#32

Brace - pull yoke

R318993

89,67 €*

#33

Spacer - yoke jaw

R318994

7,97 €*

#34

Link - lift over center latch

R319051

26,81 €*

#35

Spacer - over center latch

R319053

6,59 €*

#36

Pin - rod end

R325390

6,91 €*

#37

Pin - over center latch

R325539

4,94 €*

#38

Pin - over center latch

R325540

3,65 €*

#39

Pin - coupling

R360341

48,35 €*

#40

Bolt - hex hd 3/8-24 x 2-1/2

R400310

3,03 €*

#41

Bolt - hex hd 3/8-24 x 3

R400312

3,76 €*

#42

Bolt - hex hd 3/8-24 x 3-1/2

R400314

4,51 €*

#43

Bolt - hex hd 7/16-14 x 2-1/2

R400346

5,14 €*

#44

Bolt - hex hd 1/2-13 x 3-1/2

R325-14

2,99 €*

#45

Nut - 7/16 hex yellow zinc

R443114

0,98 €*

#46

Nut - 1/2-13 zinc

R443118

1,27 €*

#47

Nut - 7/16-20 hex

R444730

1,33 €*

#48

Locknut - 3/8-24

R444744

0,98 €*

#49

Lock washer - 7/16

R446146

0,63 €*

#50

Pin - cotter 1/8 x 1

R460028

0,91 €*

#51

Pin - roll

R461416

0,68 €*

#52

Hinge - front

R502757

142,96 €*

#53

Hinge - rear

R502758

120,99 €*

#54

Bolt - hex hd 3/8-24 x 7/8

R400296

1,92 €*

#55

Washer - lock 3/8

R3254-6

0,13 €*

#56

Yoke - pull assy

R500107

435,75 €*

#57

Frame - special d rh

R119058

2.545,08 €*

#58

Frame - special d lh

R119059

2.545,08 €*

#59

Post - pull fits special d

R153248

92,47 €*
