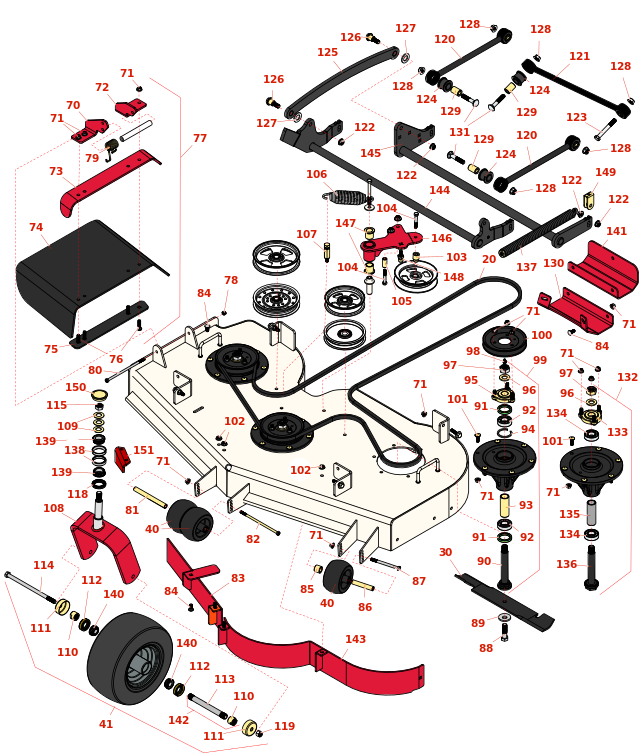

Toro Z Master Professional 5000 52in Side Discharge Deck

Choose your drawing here

2 drawings available

Wheel - front assy

RDM68-2730

€20.85*

#20

Belt- v

R115-7426

€279.72*

#30

Blad

RDM-105-7781-03

€47.67*

#30

Mower blade - 18 in high-flow

R105-7781-03

€43.43*

#30

Mower blade - 18 in recycler

R105-7779-03

€63.49*

#30

Mower blade kit - 18 in recycler set/6

R110-0408

€209.94*

#30

Mower blade kit - 18 in high-flow set/6

R108-1117

€143.68*

#40

Wheel - anti scalp

R68-2730

€23.60*

#41

Tire & wheel - 13x6:50-6 smooth semi pneumatic

R127-9528

€714.05*

#41

Wheel 13x500x6

RDM-109-9127

€393.40*

#41

Tire & wheel - 13x6.50-6 flat free

R109-9127

€243.45*

#70

Plate-hinge, front

R106-3253-01

€46.54*

#71

Locknut - 3/8-16 nylon flanged

R104-8301

€1.39*

#72

Plate-hinge, rear

R108-4059-01

€28.75*

#73

Deflector

R106-3246-01

€118.71*

#74

Deflector - long

R151416

€125.96*

#75

Strap - discharge

R106-3248-03

€28.50*

#76

Bolt - carriage 3/8-16 x 1-1/2

R3231-4

€3.70*

#77

Rubber deflector assy

R108-2792

€330.48*

#78

Locknut - 5/16-18 jam nyloc

R3296-47

€0.91*

#79

Spring - torsion

R108-4052

€34.06*

#80

Bolt - hx hd 5/16-18 x 7 1/2

R322-50

€9.80*

#81

Spacer-wheel

R98-5967

€14.92*

#82

Bolt - hx hd 3/8-16 x 7 1/2

R108-5388

€22.89*

#83

Baffle assy

R115-7455-01

€209.27*

#84

Bolt - carriage 3/8-16 x 7/8

R3231-27

€0.92*

#85

Spacer - tube

R98-7913

€9.41*

#86

Bushing - spanner wheel

R98-7912

€9.47*

#87

Bolt - hex hd 3/8-16 x 4-1/2

R323-23

€3.61*

#88

Bolt - blade

R51-4060

€7.21*

#89

Washer - blade bolt hd

R103-0865

€11.60*

#90

Spindle shaft and zerk assy

R119-8527

€146.30*

#91

Seal - oil

R253-133

€12.31*

#92

Bearing - ball - special

R119-8558

€24.44*

#92

Toro mesaslager

RDM-119-8558

€17.50*

#93

Spacer

R117-6184

€12.28*

#94

Snap ring

R119-8532

€9.73*

#95

Spindle hub assy w/studs

R117-6172

€73.54*

#96

Flat washer - hardened

R92-5836

€9.57*

#97

Locknut - 3/4-16 heavy jam rh thread

R3296-67

€6.39*

#98

Zerk - grease

R471219

€0.88*

#99

Spindle assy

R119-8560

€573.20*

#100

Pulley - 6.75 in dia with 1.75 bore

R115-7450

€88.28*

#101

Bolt- ribbed neck

R114-8195

€2.76*

#102

Nut - flanged whiz - 3/8-16

R32128-43

€1.05*

#103

Mount-pulley

R112-4212

€18.32*

#104

Bolt - 3/8-16 x 2 1/4 gr5

R323-11

€1.40*

#105

Spacer

R104-0151

€24.81*

#106

Spring - extension

R116-6317

€48.58*

#107

Anchor - spring - tall

R114-5867

€29.80*

#108

Fork - caster 7.875 in inside

R116-8888

€203.33*

#109

Washer - spring disc

R1-633508

€4.39*

#110

Spacer - nut - hardened

R103-3051

€17.80*

#111

Guard - seal

R103-2768

€8.71*

#112

Seal - grease

R103-0063

€11.82*

#113

Axle- caster

R103-5156

€25.37*

#114

Bolt - hx hd 1/2-13 x 9 1/2

R325-39

€20.46*

#115

Nut - nylon lock 3/4-10 gr 8

R3296-51

€7.24*

#118

Seal - grease

R116-5647

€7.05*

#119

Locknut - esna 1/2-13

RF5003

€2.21*

#120

Deck strut assy

R109-7952

€196.46*

#121

Panhard rod assy

R109-5013

€201.45*

#122

Nut - 7-16-14 hx serr fl

R32128-37

€4.69*

#123

Bolt - hex head

R325-17

€4.63*

#124

Bushing - suspension - rubber

R109-5009

€6.97*

#125

Link-lift - deck

R116-0797-03

€225.62*

#126

Bolt - hx hd fl shoulder

R116-0780

€20.62*

#127

Washer - 3/4 sae

R453022

€1.29*

#128

Nut - lock hex flanged 1/2-13

R32128-23

€2.25*

#129

Spacer

R109-5010

€9.73*

#130

Plate- skid

R112-4230-01

€142.27*

#131

Carriage bolt - 1/2-13 x 2 1/2 grade 5

R3233-34

€17.44*

#132

Spindle assy - no grease

R127-0560

€742.95*

#133

Spindle hub assy w/studs

R127-0557

€72.66*

#134

Bearing - ball - special triple seal

R116-0720

€22.51*

#135

Spacer - bearing

R127-0554

€30.25*

#136

Shaft- spindle

R127-0556

€87.74*

#137

Spring - extension

R116-0886

€216.58*

#138

Cup - bearing

R254-72

€5.78*

#139

Tapered bearing cone

R254-94

€10.70*

#140

Tapered bearing cone

R254-78

€9.28*

#141

Plate - skid

R121-7975-01

€128.66*

#142

Axle assy - with bushing - caster

R126-5361

€32.79*

#143

Baffle assy

R115-7461-01

€323.22*

#144

Lift - rear deck

R116-0459-03

€568.65*

#145

Decklift - front

R126-2475-03

€394.36*

#146

Idler arm assy with bushings

R114-5870

€289.67*

#147

Bearing - flanged

R1-303514

€30.60*

#148

Anchor - spring - short

R132-4729

€22.57*

#149

Yoke - adjust - deck

R109-9066

€12.39*

#150

Grease cap - castor

R103-4882

€8.18*

#151

Baffle - discharge

R107-8541-01

€33.96*
