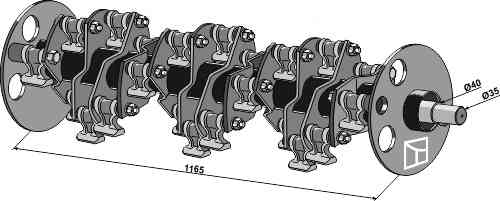

Blades shaft 63-1003
| Product number: | 808-63-1003 |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| S.M.A.: | X968 |
|---|
Technical details
| Aantal klepels: | 28 |
|---|---|
| Inbouwmaat: | 1200 mm |
| Suitable for brand: | SMA |
| Product type: | Blades shaft |
| Bolt hole diameter: | 40 mm |
| Diameter 1: | 35 mm |
| Diameter 2: | 40 mm |
| Lengte: | 1165 mm |
| Mounting diameter: | 12.00 mm |
| Weight: | 103.8 kg |
| Wideness: | 1165 mm |
X968 y blades for s m a machines
Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with X968 from s m a in the form of 808-63-1003.
Mounting 808-63-1003 y blades
Y blades are mounted on shackles on the flail mower. The X968 y blades and our alternative 808-63-1003 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.
The difference between y-blades and flails
An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.
On what machines does the 808-63-1003 fit?
Like the original with number X968, the 808-63-1003 Blades shaft fitting for S.M.A. X968 fits on the machines of s m a The 808-63-1003 is fitting for these parts: S.M.A. X968.
€3,510.00 * €4,247.10
€4,247.10 incl. VAT
€4,247.10*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blades shaft 63-1003"
X968 y blades for s m a machines
Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with X968 from s m a in the form of 808-63-1003.
Mounting 808-63-1003 y blades
Y blades are mounted on shackles on the flail mower. The X968 y blades and our alternative 808-63-1003 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.
The difference between y-blades and flails
An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.
On what machines does the 808-63-1003 fit?
Like the original with number X968, the 808-63-1003 Blades shaft fitting for S.M.A. X968 fits on the machines of s m a The 808-63-1003 is fitting for these parts: S.M.A. X968.
Properties
| Product number: | 808-63-1003 |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| S.M.A.: | X968 |
|---|
Technical details
| Aantal klepels: | 28 |
|---|---|
| Inbouwmaat: | 1200 mm |
| Suitable for brand: | SMA |
| Product type: | Blades shaft |
| Bolt hole diameter: | 40 mm |
| Diameter 1: | 35 mm |
| Diameter 2: | 40 mm |
| Lengte: | 1165 mm |
| Mounting diameter: | 12.00 mm |
| Weight: | 103.8 kg |
| Wideness: | 1165 mm |
