RDM Parts Y-blade fitting for Kuhn JX136098

JX136098 y blades for kuhn machines

Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with JX136098 from kuhn in the form of 808-63-NOB-13.

Mounting 808-63-NOB-13 y blades

Y blades are mounted on shackles on the flail mower. The JX136098 y blades and our alternative 808-63-NOB-13 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.

The difference between y-blades and flails

An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.

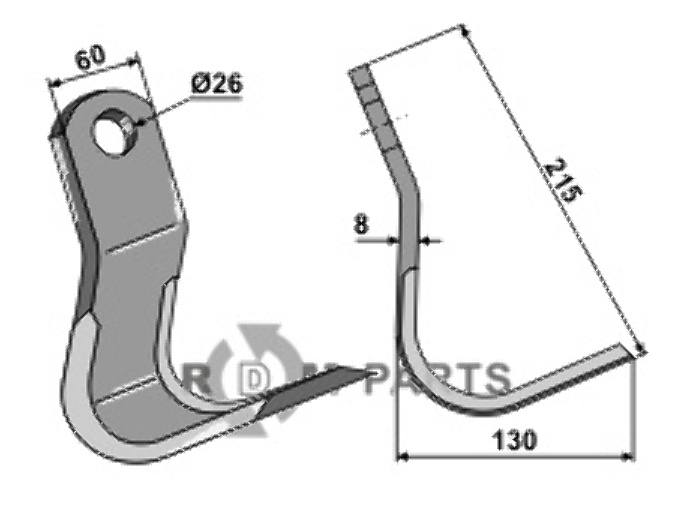

Specifications of the JX136098 and the 808-63-NOB-13

The original part for Y-blade fitting for Kuhn JX136098 has a comparable length as our fitting original with number 808-63-NOB-13. The product is thus 215 millimeter long and is a fitting replacement for your machinery. The width of the 808-63-NOB-13 is equal to the original. The parts is equal in width, 60 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Y-blade fitting for Kuhn JX136098 with part number 808-63-NOB-13 has a thickness of 8 millimeter. The alternative that is offered by RDM Parts with number 808-63-NOB-13 has an equal thickness and is thus a suitable alternative for the original. This 808-63-NOB-13 Y-blade fitting for Kuhn JX136098 has a mounting hole of 26 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-63-NOB-13 fit?

Comparable to the original with number JX136098 the 808-63-NOB-13 fits for the machines of kuhn. Use the 808-63-NOB-13 as a fitting replacement for: Kuhn JX136098, and Nobili JX136098.
