RDM Parts Y-blade fitting for Palladino 560109
| Product number: | 808-63-PAL-17 |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Müthing: | MU000558 |
|---|---|
| Palladino: | 560109 |
Technical details
| Suitable for brand: | Muthing, Palladino |
|---|---|
| Product type: | Blades |
| Boring: | 16.5 mm |
| Lengte: | 105 mm |
| Material Tickness: | 10 mm |
| Radius: | 30 mm |
| Thickness: | 10 mm |
| Weight: | 0.33 kg |
| Wideness: | 40 mm |
560109 y blades for palladino machines
Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with 560109 from palladino in the form of 808-63-PAL-17.
Mounting 808-63-PAL-17 y blades
Y blades are mounted on shackles on the flail mower. The 560109 y blades and our alternative 808-63-PAL-17 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.
The difference between y-blades and flails
An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.

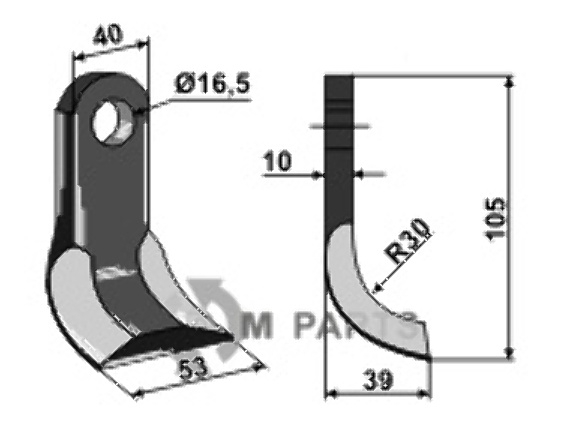

Specifications of the 560109 and the 808-63-PAL-17
The original part for Y-blade fitting for Palladino 560109 has a comparable length as our fitting original with number 808-63-PAL-17. The Y-blade fitting for Palladino 560109 is 105 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 40 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Y-blade fitting for Palladino 560109 with part number 808-63-PAL-17 has a thickness of 10 millimeter. So the part from RDM Parts with number 808-63-PAL-17 as an alternative for the machine. The mounting holes of the 808-63-PAL-17 have a diameter of 16,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.
On what machines does the 808-63-PAL-17 fit?
the 808-63-PAL-17 and 560109 fit on palladino machinery. Use the 808-63-PAL-17 as a fitting replacement for: Palladino 560109, and Müthing MU000558.
€8.17*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
560109 y blades for palladino machines
Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with 560109 from palladino in the form of 808-63-PAL-17.
Mounting 808-63-PAL-17 y blades
Y blades are mounted on shackles on the flail mower. The 560109 y blades and our alternative 808-63-PAL-17 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.
The difference between y-blades and flails
An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.
Specifications of the 560109 and the 808-63-PAL-17
The original part for Y-blade fitting for Palladino 560109 has a comparable length as our fitting original with number 808-63-PAL-17. The Y-blade fitting for Palladino 560109 is 105 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 40 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Y-blade fitting for Palladino 560109 with part number 808-63-PAL-17 has a thickness of 10 millimeter. So the part from RDM Parts with number 808-63-PAL-17 as an alternative for the machine. The mounting holes of the 808-63-PAL-17 have a diameter of 16,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.
On what machines does the 808-63-PAL-17 fit?
the 808-63-PAL-17 and 560109 fit on palladino machinery. Use the 808-63-PAL-17 as a fitting replacement for: Palladino 560109, and Müthing MU000558.
