RDM Parts Y-blade fitting for Quivogne CTX50008

Product information "RDM Parts Y-blade fitting for Quivogne CTX50008"

CTX50008 y blades for quivogne machines

Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with CTX50008 from quivogne in the form of 808-63-SMA-56.

Mounting 808-63-SMA-56 y blades

Y blades are mounted on shackles on the flail mower. The CTX50008 y blades and our alternative 808-63-SMA-56 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.

The difference between y-blades and flails

An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.

Specifications of the CTX50008 and the 808-63-SMA-56

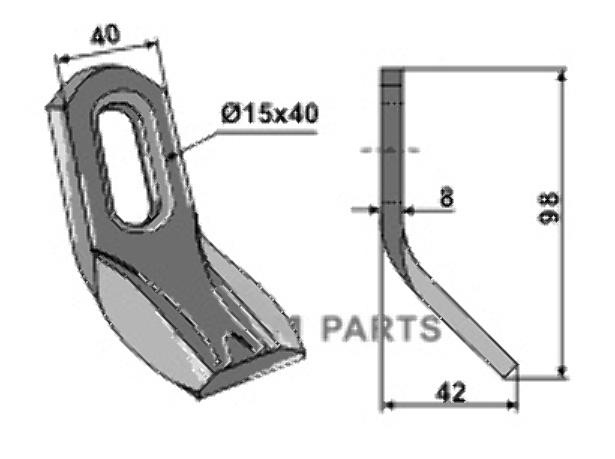

The Y-blade fitting for Quivogne CTX50008 from quivogne is just as long as the 808-63-SMA-56 from RDM Parts. The product is thus 98 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-63-SMA-56 are equal in width. The parts is equal in width, 40 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The CTX50008 from quivogne has a thickness of 8 millimeter. The alternative that is offered by RDM Parts with number 808-63-SMA-56 has an equal thickness and is thus a suitable alternative for the original. This 808-63-SMA-56 Y-blade fitting for Quivogne CTX50008 has a mounting hole of 15 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-63-SMA-56 fit?

the 808-63-SMA-56 and CTX50008 fit on quivogne machinery. The 808-63-SMA-56 is fitting for these parts: Quivogne CTX50008, Twose 199.999, and S.M.A. TX95.

Show more Show less

Properties

Product number: 808-63-SMA-56
Manufacturer Industriehof
Replaces original
Quivogne: CTX50008
Twose: 199.999
S.M.A.: TX95
Noremat: 1.39.234NR / 103052
Lagarde: 7878
Carroy et Giraudon: 231389
Rousseau: 5.254.49
Technical details
Suitable for brand: Carroy et Giraudon, Lagarde, Noremat, Quivogne, Rousseau, SMA, Twose
Product type: Blades
Bore length: 40 mm
Bore width: 15 mm
Boring: 15 mm
Lengte: 98 mm
Material Tickness: 8 mm
Thickness: 8 mm
Weight: 0.22 kg
Wideness: 40 mm
Show more Show less
