Shackle 63-trr-03
| Product number: | 808-63-TRR-03 |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Maschio / Gaspardo: | T18004065 |
|---|---|
| Ferri: | 0901118 |

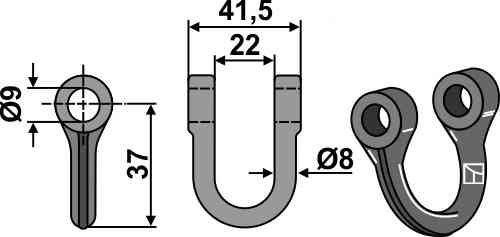

Technical details
| Suitable for brand: | Ferri, Maschio Gaspardo |
|---|---|
| Product type: | Bracket |
| Boring: | 9 mm |
| Diameter: | 8 mm |
| Distance center hole to connector pin: | 38 mm |
| Height: | 37 mm |
| Inside diameter: | 22 mm |
| Lengte: | 37 mm |
| Material Tickness: | 8 mm |
| Outside diameter: | 41.5 mm |
| Thickness: | 8 mm |
| Weight: | 0.054 kg |
Shackle fitting for Maschio / Gaspardo T18004065
The Shackle fitting for Maschio / Gaspardo T18004065 with part number 808-63-TRR-03 is one of the parts in the growing assortment of RDM Parts. We sell not only original parts, but also fitting alternatives. Service is important to us so if you have any questions about a part or machine, you can always ask us for advice.
Specifications of the T18004065 and the 808-63-TRR-03
The original part for Shackle fitting for Maschio / Gaspardo T18004065 has a comparable length as our fitting original with number 808-63-TRR-03. The product is thus 37 millimeter long and is a fitting replacement for your machinery. The thickness of the Shackle fitting for Maschio / Gaspardo T18004065 is important for the way the part fits on the machine. The original Shackle fitting for Maschio / Gaspardo T18004065 from maschio gaspardo is 8 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-63-TRR-03 fits as an alternative for the original.
On what machines does the 808-63-TRR-03 fit?
Comparable to the original with number T18004065 the 808-63-TRR-03 fits for the machines of maschio gaspardo. The 808-63-TRR-03 is fitting for these parts: Maschio / Gaspardo T18004065, and Ferri 0901118.
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Shackle fitting for Maschio / Gaspardo T18004065
The Shackle fitting for Maschio / Gaspardo T18004065 with part number 808-63-TRR-03 is one of the parts in the growing assortment of RDM Parts. We sell not only original parts, but also fitting alternatives. Service is important to us so if you have any questions about a part or machine, you can always ask us for advice.
Specifications of the T18004065 and the 808-63-TRR-03
The original part for Shackle fitting for Maschio / Gaspardo T18004065 has a comparable length as our fitting original with number 808-63-TRR-03. The product is thus 37 millimeter long and is a fitting replacement for your machinery. The thickness of the Shackle fitting for Maschio / Gaspardo T18004065 is important for the way the part fits on the machine. The original Shackle fitting for Maschio / Gaspardo T18004065 from maschio gaspardo is 8 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-63-TRR-03 fits as an alternative for the original.
On what machines does the 808-63-TRR-03 fit?
Comparable to the original with number T18004065 the 808-63-TRR-03 fits for the machines of maschio gaspardo. The 808-63-TRR-03 is fitting for these parts: Maschio / Gaspardo T18004065, and Ferri 0901118.
Properties
| Product number: | 808-63-TRR-03 |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Maschio / Gaspardo: | T18004065 |
|---|---|
| Ferri: | 0901118 |
Technical details
| Suitable for brand: | Ferri, Maschio Gaspardo |
|---|---|
| Product type: | Bracket |
| Boring: | 9 mm |
| Diameter: | 8 mm |
| Distance center hole to connector pin: | 38 mm |
| Height: | 37 mm |
| Inside diameter: | 22 mm |
| Lengte: | 37 mm |
| Material Tickness: | 8 mm |
| Outside diameter: | 41.5 mm |
| Thickness: | 8 mm |
| Weight: | 0.054 kg |
