RDM Parts Y-blade fitting for Vogel u. Noot 931040001

931040001 y blades for vogel u noot machines

Y blades are mostly used for less intensive mowing jobs with a flail mower. RDM Parts has several alternatives for the original with 931040001 from vogel u noot in the form of 808-63-VIG-03.

Mounting 808-63-VIG-03 y blades

Y blades are mounted on shackles on the flail mower. The 931040001 y blades and our alternative 808-63-VIG-03 is often attached in pairs to a series of shackles or a chain. This ensures a larger range. The chain is mounted to an assembly point on a rotating roll in the mowing deck.

The difference between y-blades and flails

An y blade is better suited for lighter mowing jobs when compared to a flail. Both options give a nice mowing result. But a flail is bigger and is thus better suited for mowing other thick plants like bushes. At the same time a flail can also damage a tree, whilst this is harder with a y blade. Which one is better for you depends on the kind of mowing job you have in mind.

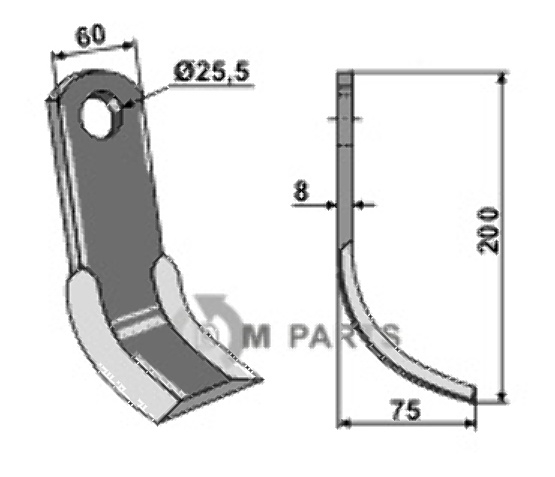

Specifications of the 931040001 and the 808-63-VIG-03

The original part for Y-blade fitting for Vogel u. Noot 931040001 has a comparable length as our fitting original with number 808-63-VIG-03. The product is thus 200 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-63-VIG-03 are equal in width. The parts is equal in width, 60 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Y-blade fitting for Vogel u. Noot 931040001 with part number 808-63-VIG-03 has a thickness of 8 millimeter. So the part from RDM Parts with number 808-63-VIG-03 as an alternative for the machine. The 808-63-VIG-03 and the original with are mounted with a mounting hole of 25,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-63-VIG-03 fit?

the 808-63-VIG-03 and 931040001 fit on vogel u noot machinery. The 808-63-VIG-03 is fitting for these parts: Vogel u. Noot 931040001, and Vigolo VI0022 - 931040001.
