Blade, right model fitting for Agria 1667-06624
Product number: | 808-AGR-18R |
---|---|
Manufacturer | Industriehof |
Replaces original
Agria: | 1667-06624 |
---|
Technical details
Suitable for brand: | Agria |
---|---|
Product type: | Milling Knife |
Bolt hole diameter: | 10.5 mm |
Boring: | 10.5 mm |
Hole spacing: | 38 mm |
Lengte: | 135 mm |
Material Tickness: | 5 mm |
Mounting: | Right |
Thickness: | 5 mm |
Weight: | 0.26 kg |
Wideness: | 50 mm |
Working widt: | 60 mm |
1667-06624 blades for the agria machine
1667-06624 tiller blades fit on the rotary tillers of agria. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-AGR-18R, which is comparable with the original.
Mounting the blades
The 1667-06624 and our fitting alternative 808-AGR-18R are secured in place with a bolt. The rotation direction is also of importance when the tiller blade is mounted. This part is placed on the right side. Blades are placed in this alternating manner to optimally plough through the soil.

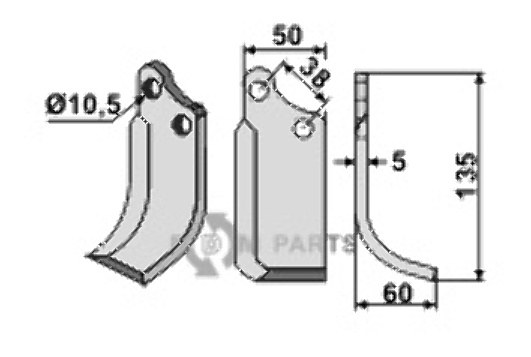

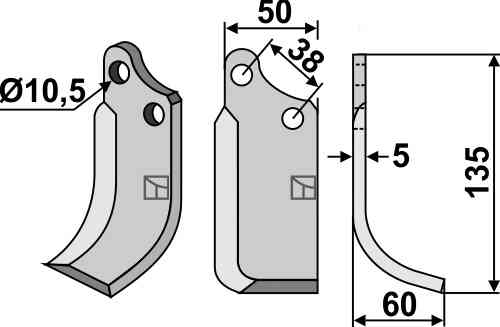

Specifications of the 1667-06624 and the 808-AGR-18R
The length of the Blade, right model fitting for Agria 1667-06624 with RDM number 808-AGR-18R is equal to the length of the original part. With its 135 millimeter it is a good alternative to the original. The width of the 808-AGR-18R is equal to the original. This Blade, right model fitting for Agria 1667-06624 is 50 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, right model fitting for Agria 1667-06624 from agria is 5 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-AGR-18R fits as an alternative for the original. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, right model fitting for Agria 1667-06624 808-AGR-18R is 38 millimeter. The 808-AGR-18R and the original with are mounted with a mounting hole of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-AGR-18R fit?
the 808-AGR-18R and 1667-06624 fit on agria machinery. Use the 808-AGR-18R as a fitting replacement for: Agria 1667-06624.
€5.94 * €7.19
€7.19 incl. VAT
€7.19*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, right model fitting for Agria 1667-06624"
1667-06624 blades for the agria machine
1667-06624 tiller blades fit on the rotary tillers of agria. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-AGR-18R, which is comparable with the original.
Mounting the blades
The 1667-06624 and our fitting alternative 808-AGR-18R are secured in place with a bolt. The rotation direction is also of importance when the tiller blade is mounted. This part is placed on the right side. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the 1667-06624 and the 808-AGR-18R
The length of the Blade, right model fitting for Agria 1667-06624 with RDM number 808-AGR-18R is equal to the length of the original part. With its 135 millimeter it is a good alternative to the original. The width of the 808-AGR-18R is equal to the original. This Blade, right model fitting for Agria 1667-06624 is 50 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, right model fitting for Agria 1667-06624 from agria is 5 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-AGR-18R fits as an alternative for the original. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, right model fitting for Agria 1667-06624 808-AGR-18R is 38 millimeter. The 808-AGR-18R and the original with are mounted with a mounting hole of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-AGR-18R fit?
the 808-AGR-18R and 1667-06624 fit on agria machinery. Use the 808-AGR-18R as a fitting replacement for: Agria 1667-06624.
Properties
Product number: | 808-AGR-18R |
---|---|
Manufacturer | Industriehof |
Replaces original
Agria: | 1667-06624 |
---|
Technical details
Suitable for brand: | Agria |
---|---|
Product type: | Milling Knife |
Bolt hole diameter: | 10.5 mm |
Boring: | 10.5 mm |
Hole spacing: | 38 mm |
Lengte: | 135 mm |
Material Tickness: | 5 mm |
Mounting: | Right |
Thickness: | 5 mm |
Weight: | 0.26 kg |
Wideness: | 50 mm |
Working widt: | 60 mm |
