Blade, left model fitting for Benassi Z3 - 6CM003
| Product number: | 808-BEN-32L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Holder: | 1832442310 |
|---|---|
| Benassi: | Z3 - 6CM003 |
| Benassi: | Z3-6CM003 |

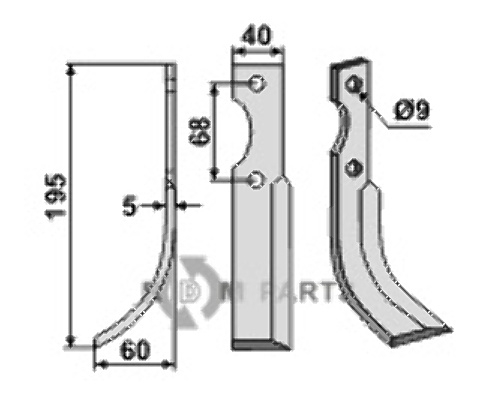

Technical details
| Suitable for brand: | Benassi |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 9 mm |
| Boring: | 9 mm |
| Hole spacing: | 68 mm |
| Lengte: | 195 mm |
| Material Tickness: | 5 mm |
| Mounting: | Left |
| Thickness: | 5 mm |
| Weight: | 0.33 kg |
| Wideness: | 40 mm |
| Working widt: | 60 mm |
Z3 - 6CM003 blades for the benassi machine
Z3 - 6CM003 tiller blades fit on the rotary tillers of benassi. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-BEN-32L.
Mounting the blades
The Z3 - 6CM003 and our fitting alternative 808-BEN-32L are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-BEN-32L and the original counterpart, they are placed at the left side. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the Z3 - 6CM003 and the 808-BEN-32L
The original part for Blade, left model fitting for Benassi Z3 - 6CM003 has a comparable length as our fitting original with number 808-BEN-32L. The Blade, left model fitting for Benassi Z3 - 6CM003 is 195 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 40 millimeter to be exact. The thickness of the Blade, left model fitting for Benassi Z3 - 6CM003 is important for the way the part fits on the machine. The original Blade, left model fitting for Benassi Z3 - 6CM003 from benassi is 5 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-BEN-32L fits as an alternative for the original. The hole spacing of Blade, left model fitting for Benassi Z3 - 6CM003 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the benassi machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, left model fitting for Benassi Z3 - 6CM003 808-BEN-32L has a hole spacing of 68 millimeter. The mounting holes of the 808-BEN-32L have a diameter of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.
On what machines does the 808-BEN-32L fit?
Like the original with number Z3 - 6CM003, the 808-BEN-32L Blade, left model fitting for Benassi Z3 - 6CM003 fits on the machines of benassi. The 808-BEN-32L is fitting for these parts: Holder 1832442310, and Benassi Z3 - 6CM003.
.€4.97 * €6.01
€6.01 incl. VAT
€6.01*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, left model fitting for Benassi Z3 - 6CM003"
Z3 - 6CM003 blades for the benassi machine
Z3 - 6CM003 tiller blades fit on the rotary tillers of benassi. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-BEN-32L.
Mounting the blades
The Z3 - 6CM003 and our fitting alternative 808-BEN-32L are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-BEN-32L and the original counterpart, they are placed at the left side. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the Z3 - 6CM003 and the 808-BEN-32L
The original part for Blade, left model fitting for Benassi Z3 - 6CM003 has a comparable length as our fitting original with number 808-BEN-32L. The Blade, left model fitting for Benassi Z3 - 6CM003 is 195 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 40 millimeter to be exact. The thickness of the Blade, left model fitting for Benassi Z3 - 6CM003 is important for the way the part fits on the machine. The original Blade, left model fitting for Benassi Z3 - 6CM003 from benassi is 5 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-BEN-32L fits as an alternative for the original. The hole spacing of Blade, left model fitting for Benassi Z3 - 6CM003 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the benassi machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, left model fitting for Benassi Z3 - 6CM003 808-BEN-32L has a hole spacing of 68 millimeter. The mounting holes of the 808-BEN-32L have a diameter of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.
On what machines does the 808-BEN-32L fit?
Like the original with number Z3 - 6CM003, the 808-BEN-32L Blade, left model fitting for Benassi Z3 - 6CM003 fits on the machines of benassi. The 808-BEN-32L is fitting for these parts: Holder 1832442310, and Benassi Z3 - 6CM003.
.Properties
| Product number: | 808-BEN-32L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Holder: | 1832442310 |
|---|---|
| Benassi: | Z3 - 6CM003 |
| Benassi: | Z3-6CM003 |
Technical details
| Suitable for brand: | Benassi |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 9 mm |
| Boring: | 9 mm |
| Hole spacing: | 68 mm |
| Lengte: | 195 mm |
| Material Tickness: | 5 mm |
| Mounting: | Left |
| Thickness: | 5 mm |
| Weight: | 0.33 kg |
| Wideness: | 40 mm |
| Working widt: | 60 mm |
