Blade, left model fitting for Bertolini 671014

671014 blades for the bertolini machine

bertolini tiller blades 671014 fit on the machines of the same brand. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-BER-11L, which is comparable with the original.

Mounting the blades

Tiller blades are fastened with a bolt. The rotating direction of the blade should be noticed when attaching them. This part is placed on the left side. Blades are placed in this alternating manner to optimally plough through the soil.

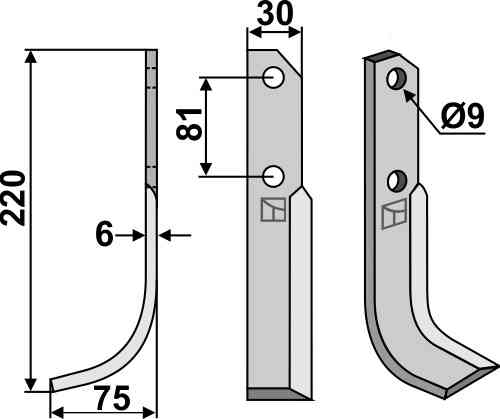

Specifications of the 671014 and the 808-BER-11L

The original part for Blade, left model fitting for Bertolini 671014 has a comparable length as our fitting original with number 808-BER-11L. The Blade, left model fitting for Bertolini 671014 is 220 millimeter long. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The parts is equal in width, 30 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The 671014 from bertolini has a thickness of 6 millimeter. So the part from RDM Parts with number 808-BER-11L as an alternative for the machine. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, left model fitting for Bertolini 671014 808-BER-11L has a hole spacing of 81 millimeter. The mounting holes of the 808-BER-11L have a diameter of 9 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-BER-11L fit?

the 808-BER-11L and 671014 fit on bertolini machinery. Use the 808-BER-11L as a fitting replacement for: Honda F.201, and Bertolini 671014.
