Blade, left model fitting for Bertolini 012032

012032 blades for the bertolini machine

bertolini tillers use 012032 tiller blades. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-BER-18L, which is comparable with the original.

Mounting the blades

Tiller blades are fastened with a bolt. The rotation direction is also of importance when the tiller blade is mounted. The 808-BER-18L is pretty much the same as the original and is placed on the left side. Blades are placed in this alternating manner to optimally plough through the soil.

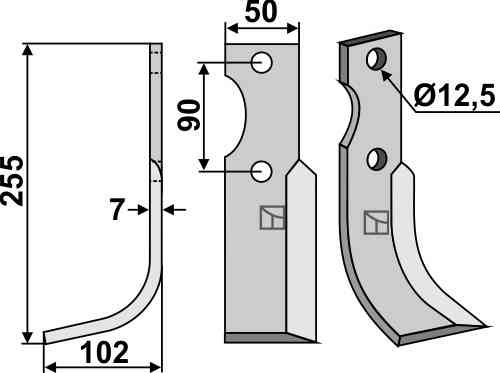

Specifications of the 012032 and the 808-BER-18L

The Blade, left model fitting for Bertolini 012032 from bertolini is just as long as the 808-BER-18L from RDM Parts. The Blade, left model fitting for Bertolini 012032 is 255 millimeter long. The original and the part from RDM Parts 808-BER-18L are equal in width. This Blade, left model fitting for Bertolini 012032 is 50 millimeter in width. The thickness of the Blade, left model fitting for Bertolini 012032 is important for the way the part fits on the machine. The Blade, left model fitting for Bertolini 012032 with part number 808-BER-18L has a thickness of 7 millimeter. Since this is equal to the parts of RDM Parts, the 808-BER-18L fits as an alternative for the original. The hole spacing of Blade, left model fitting for Bertolini 012032 is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from bertolini. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, left model fitting for Bertolini 012032 808-BER-18L is 90 millimeter. The mounting holes of the 808-BER-18L have a diameter of 12,5 millimeter. These holes are used to mount the Blade, left model fitting for Bertolini 012032 to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-BER-18L fit?

the 808-BER-18L and 012032 fit on bertolini machinery. Use the 808-BER-18L as a fitting replacement for: Howard 9948(9930), Bertolini 012032, and Ferrari 74-75HP24.
