Blade, left model fitting for Bertolini 15603

15603 blades for the bertolini machine

bertolini tillers use 15603 tiller blades. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-BER-25L, which is comparable with the original.

Mounting the blades

Generally speaking, tiller blades like the 15603 and 808-BER-25L are fixed with a bolt. The rotation direction is also of importance when the tiller blade is mounted. In case of the 808-BER-25L and the original counterpart, they are placed at the left side. The tiller blades are mounted in an alternating way.

Specifications of the 15603 and the 808-BER-25L

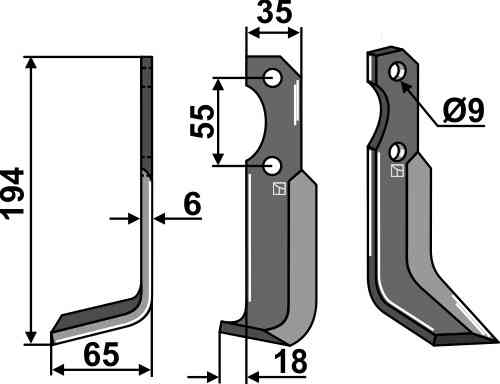

RDM Parts also has the 808-BER-25L Blade, left model fitting for Bertolini 15603 with an equal length as the original. The Blade, left model fitting for Bertolini 15603 is 194 millimeter long. The original and the part from RDM Parts 808-BER-25L are equal in width. The width measures 35 millimeter. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, left model fitting for Bertolini 15603 from bertolini is 6 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing of Blade, left model fitting for Bertolini 15603 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the bertolini machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of the 808-BER-25L from RDM Parts is equal to the original with number 15603 and the distance measures 55 millimeter. The mounting holes of the 808-BER-25L have a diameter of 9 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-BER-25L fit?

Comparable to the original with number 15603 the 808-BER-25L fits for the machines of bertolini. Use the 808-BER-25L as a fitting replacement for: Huard 756785(762720), and Bertolini 15603.
