Blade, right model fitting for Bungartz E 5 2056
| Product number: | 808-BUN-54R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Bungartz: | E 5 2056 |
|---|---|
| Bungartz: | E52056 |

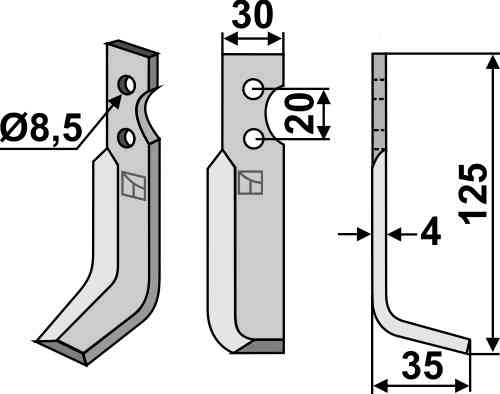

Technical details
| Suitable for brand: | Bungartz |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 8.5 mm |
| Boring: | 8.5 mm |
| Hole spacing: | 20 mm |
| Lengte: | 125 mm |
| Material Tickness: | 4 mm |
| Mounting: | Right |
| Thickness: | 4 mm |
| Weight: | 0.2 kg |
| Wideness: | 30 mm |
| Working widt: | 35 mm |
E 5 2056 blades for the bungartz machine
E 5 2056 tiller blades fit on the rotary tillers of bungartz. If you need an alternative, then you can use the 808-BUN-54R, which is a fitting solution for your tiller.
Mounting the blades
Generally speaking, tiller blades like the E 5 2056 and 808-BUN-54R are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-BUN-54R and the original counterpart, they are placed at the right side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the E 5 2056 and the 808-BUN-54R
The original part for Blade, right model fitting for Bungartz E 5 2056 has a comparable length as our fitting original with number 808-BUN-54R. The product is thus 125 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-BUN-54R are equal in width. The width measures 30 millimeter. The thickness of Blade, right model fitting for Bungartz E 5 2056 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The Blade, right model fitting for Bungartz E 5 2056 with part number 808-BUN-54R has a thickness of 4 millimeter. The alternative that is offered by RDM Parts with number 808-BUN-54R has an equal thickness and is thus a suitable alternative for the original.
The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Bungartz E 5 2056. With these mounting holes the part can be attached to the machine from bungartz. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, right model fitting for Bungartz E 5 2056 808-BUN-54R is 20 millimeter. The mounting holes of the 808-BUN-54R have a diameter of 8,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-BUN-54R fit?
Comparable to the original with number E 5 2056 the 808-BUN-54R fits for the machines of bungartz. Use the 808-BUN-54R as a fitting replacement for: Bungartz E 5 2056.
.€9.80*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
E 5 2056 blades for the bungartz machine
E 5 2056 tiller blades fit on the rotary tillers of bungartz. If you need an alternative, then you can use the 808-BUN-54R, which is a fitting solution for your tiller.
Mounting the blades
Generally speaking, tiller blades like the E 5 2056 and 808-BUN-54R are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-BUN-54R and the original counterpart, they are placed at the right side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the E 5 2056 and the 808-BUN-54R
The original part for Blade, right model fitting for Bungartz E 5 2056 has a comparable length as our fitting original with number 808-BUN-54R. The product is thus 125 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-BUN-54R are equal in width. The width measures 30 millimeter. The thickness of Blade, right model fitting for Bungartz E 5 2056 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The Blade, right model fitting for Bungartz E 5 2056 with part number 808-BUN-54R has a thickness of 4 millimeter. The alternative that is offered by RDM Parts with number 808-BUN-54R has an equal thickness and is thus a suitable alternative for the original.
The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Bungartz E 5 2056. With these mounting holes the part can be attached to the machine from bungartz. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, right model fitting for Bungartz E 5 2056 808-BUN-54R is 20 millimeter. The mounting holes of the 808-BUN-54R have a diameter of 8,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-BUN-54R fit?
Comparable to the original with number E 5 2056 the 808-BUN-54R fits for the machines of bungartz. Use the 808-BUN-54R as a fitting replacement for: Bungartz E 5 2056.
