Blade, right model fitting for FM-Matras R5 R100
| Product number: | 808-FMO-05R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Muratori: | 12002901 |
|---|---|
| FM-Matras: | R5 R100 |
| FM-Matras: | R5R100 |

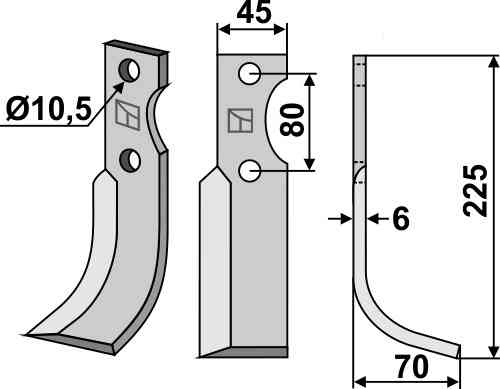

Technical details
| Suitable for brand: | FM Matras |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 80 mm |
| Lengte: | 255 mm |
| Material Tickness: | 6 mm |
| Mounting: | Right |
| Thickness: | 6 mm |
| Weight: | 0.5 kg |
| Wideness: | 45 mm |
| Working widt: | 70 mm |
R5 R100 blades for the fm matras machine
The R5 R100 is a blade for a rotary tiller from fm matras. If you need an alternative, then you can use the 808-FMO-05R, which is a fitting solution for your tiller.
Mounting the blades
The R5 R100 and our fitting alternative 808-FMO-05R are secured in place with a bolt. The rotation direction is also of importance when the tiller blade is mounted. The 808-FMO-05R should therefore be placed on the right side to rotate correctly. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the R5 R100 and the 808-FMO-05R
The length of the Blade, right model fitting for FM-Matras R5 R100 with RDM number 808-FMO-05R is equal to the length of the original part. With its 255 millimeter it is a good alternative to the original. Equal to the original parts, the part from RDM Parts fits as an alternative for the machine. The width measures 45 millimeter. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Blade, right model fitting for FM-Matras R5 R100 with part number 808-FMO-05R has a thickness of 6 millimeter. Since this is equal to the parts of RDM Parts, the 808-FMO-05R fits as an alternative for the original. The distance between the two mounting holes is also called the hole spacing. With these mounting holes the part can be attached to the machine from fm matras. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of the 808-FMO-05R from RDM Parts is equal to the original with number R5 R100 and the distance measures 80 millimeter. The mounting holes of the 808-FMO-05R have a diameter of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.
On what machines does the 808-FMO-05R fit?
the 808-FMO-05R and R5 R100 fit on fm matras machinery. The 808-FMO-05R is fitting for these parts: Muratori 12002901, and FM-Matras R5 R100.
€7.73*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
