Blade, left model fitting for FM-Matras MT 14

MT 14 blades for the fm matras machine

fm matras tiller blades MT 14 fit on the machines of the same brand. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-GOL-17L, which is comparable with the original.

Mounting the tiller blades

To mount the 808-GOL-17L and the original MT 14 you need to use assembly materials like a bolt. The rotation direction is also of importance when the tiller blade is mounted. In case of the 808-GOL-17L and the original counterpart, they are placed at the left side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

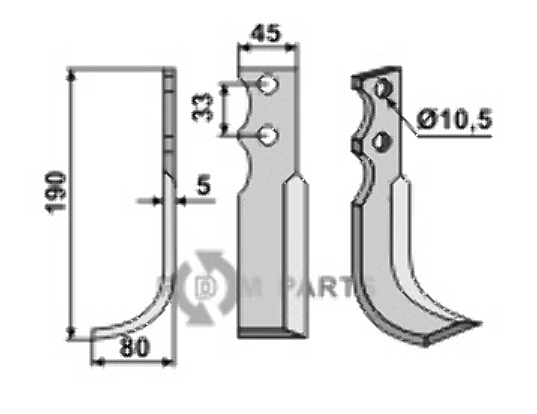

Specifications of the MT 14 and the 808-GOL-17L

The length of the Blade, left model fitting for FM-Matras MT 14 with RDM number 808-GOL-17L is equal to the length of the original part. The Blade, left model fitting for FM-Matras MT 14 is 190 millimeter long. The width of the 808-GOL-17L is equal to the original. The width measures 45 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, left model fitting for FM-Matras MT 14 with part number 808-GOL-17L has a thickness of 5 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing of Blade, left model fitting for FM-Matras MT 14 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, left model fitting for FM-Matras MT 14 808-GOL-17L has a hole spacing of 33 millimeter. The 808-GOL-17L and the original with are mounted with a mounting hole of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-GOL-17L fit?

Comparable to the original with number MT 14 the 808-GOL-17L fits for the machines of fm matras. The 808-GOL-17L is fitting for these parts: Pasquali 588-F 912/923, FM-Matras MT 14, and Goldoni 9402.
