Blade, left model fitting for FM-Matras MT 10

Product information "Blade, left model fitting for FM-Matras MT 10"

MT 10 blades for the fm matras machine

The MT 10 is a blade for a rotary tiller from fm matras. If you need an alternative, then you can use the 808-GOL-30L, which is a fitting solution for your tiller.

Mounting the tiller blades

To mount the 808-GOL-30L and the original MT 10 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-GOL-30L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

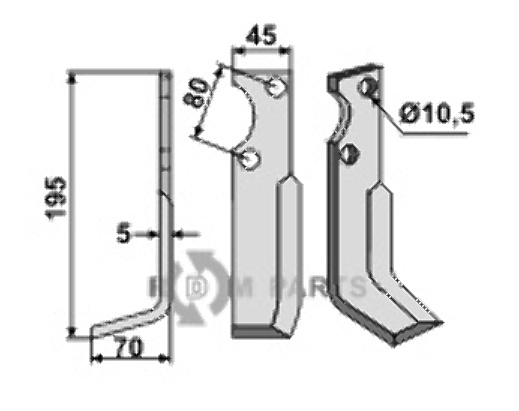

Specifications of the MT 10 and the 808-GOL-30L

The original part for Blade, left model fitting for FM-Matras MT 10 has a comparable length as our fitting original with number 808-GOL-30L. The product is thus 195 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-GOL-30L are equal in width. The parts is equal in width, 45 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. 5 millimeter thick is the Blade, left model fitting for FM-Matras MT 10 from fm matras with the original part number MT 10. So the part from RDM Parts with number 808-GOL-30L as an alternative for the machine. The hole spacing of Blade, left model fitting for FM-Matras MT 10 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the fm matras machinery. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. This Blade, left model fitting for FM-Matras MT 10 808-GOL-30L has a hole spacing of 80 millimeter. The 808-GOL-30L and the original with are mounted with a mounting hole of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-GOL-30L fit?

Like the original with number MT 10, the 808-GOL-30L Blade, left model fitting for FM-Matras MT 10 fits on the machines of fm matras. The 808-GOL-30L is fitting for these parts: Pegoraro 834, FM-Matras MT 10, and Goldoni 8833.

.
Show more Show less

Properties

Product number: 808-GOL-30L
Manufacturer Industriehof
Replaces original
Pegoraro: 834
FM-Matras: MT 10
Goldoni: 8833
FM-Matras: MT10
Technical details
Suitable for brand: FM Matras
Product type: Milling Knife
Bolt hole diameter: 10.5 mm
Boring: 10.5 mm
Hole spacing: 80 mm
Lengte: 195 mm
Material Tickness: 5 mm
Mounting: Left
Thickness: 5 mm
Weight: 0.38 kg
Wideness: 45 mm
Working widt: 70 mm
