Blade, right model

7087 grillo (pinza) rtg blades for the grillo pinza machine

The 7087 grillo (pinza) rtg is a blade for a rotary tiller from grillo pinza Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-GRI-04R, which is comparable with the original.

Mounting the blades

The 7087 grillo (pinza) rtg and our fitting alternative 808-GRI-04R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-GRI-04R and the original counterpart, they are placed at the right side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the 7087 grillo (pinza) rtg and the 808-GRI-04R

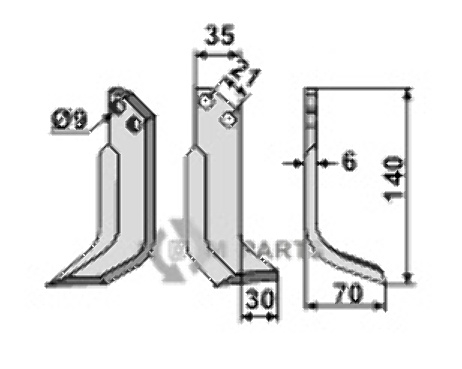

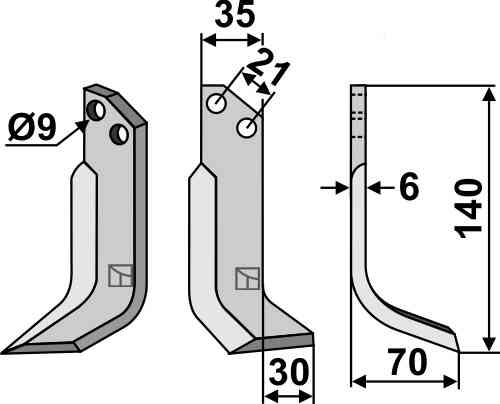

The Blade, right model from grillo pinza is just as long as the 808-GRI-04R from RDM Parts. With its 140 millimeter it is a good alternative to the original. The original and the part from RDM Parts 808-GRI-04R are equal in width. This Blade, right model is 35 millimeter in width. The thickness of Blade, right model indicates something about the wear and tear of a part, but also if this will fit on your machinery. The 7087 grillo (pinza) rtg from grillo pinza has a thickness of 6 millimeter. The alternative that is offered by RDM Parts with number 808-GRI-04R has an equal thickness and is thus a suitable alternative for the original. The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the grillo pinza machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, right model 808-GRI-04R has a hole spacing of 21 millimeter. This 808-GRI-04R Blade, right model has a mounting hole of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-GRI-04R fit?

the 808-GRI-04R and 7087 grillo (pinza) rtg fit on grillo pinza machinery. The 808-GRI-04R is fitting for these parts: Renter L.M.T. RTG, and Grillo (Pinza) 7087.
