Blade, left model
| Product number: | 808-GRI-21L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| S.E.P.: | 140 |
|---|---|
| Grillo (Pinza): | 48171 |
| Grillo: | 48171 |
Technical details
| Suitable for brand: | Grillo Pinza |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 9 mm |
| Boring: | 9 mm |
| Hole spacing: | 68 mm |
| Lengte: | 180 mm |
| Material Tickness: | 6 mm |
| Mounting: | Left |
| Thickness: | 6 mm |
| Weight: | 0.35 kg |
| Wideness: | 35 mm |
| Working widt: | 72 mm |
48171 grillo (pinza) 140 blades for the grillo pinza machine
The 48171 grillo (pinza) 140 is a blade for a rotary tiller from grillo pinza If you need an alternative, then you can use the 808-GRI-21L, which is a fitting solution for your tiller.
Mounting the blades
Generally speaking, tiller blades like the 48171 grillo (pinza) 140 and 808-GRI-21L are fixed with a bolt. The rotation direction is also of importance when the tiller blade is mounted. The 808-GRI-21L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the 48171 grillo (pinza) 140 and the 808-GRI-21L

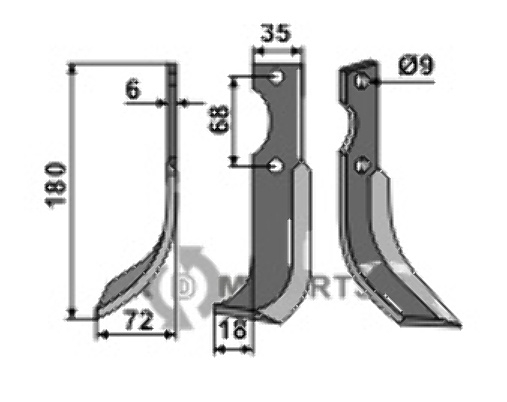

The Blade, left model from grillo pinza is just as long as the 808-GRI-21L from RDM Parts. The Blade, left model is 180 millimeter long. The width of the 808-GRI-21L is equal to the original. This Blade, left model is 35 millimeter in width. The thickness of the Blade, left model is important for the way the part fits on the machine. The Blade, left model with part number 808-GRI-21L has a thickness of 6 millimeter. The alternative that is offered by RDM Parts with number 808-GRI-21L has an equal thickness and is thus a suitable alternative for the original. The hole spacing of Blade, left model is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from grillo pinza The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, left model 808-GRI-21L has a hole spacing of 68 millimeter. The 808-GRI-21L and the original with are mounted with a mounting hole of 9 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.
On what machines does the 808-GRI-21L fit?
Like the original with number 48171 grillo (pinza) 140, the 808-GRI-21L Blade, left model fits on the machines of grillo pinza Use the 808-GRI-21L as a fitting replacement for: S.E.P. 140, and Grillo (Pinza) 48171.
