Blade, left model fitting for Holder 1832440610

1832440610 blades for the holder machine

holder tiller blades 1832440610 fit on the machines of the same brand. If you need an alternative, then you can use the 808-HOL-57L, which is a fitting solution for your tiller.

Mounting the tiller blades

To mount the 808-HOL-57L and the original 1832440610 you need to use assembly materials like a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-HOL-57L is pretty much the same as the original and is placed on the left side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

Specifications of the 1832440610 and the 808-HOL-57L

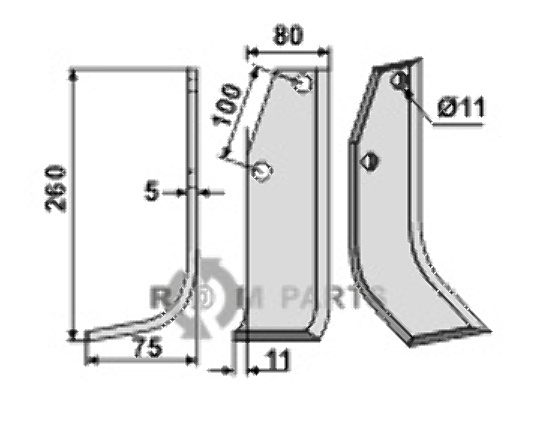

RDM Parts also has the 808-HOL-57L Blade, left model fitting for Holder 1832440610 with an equal length as the original. The Blade, left model fitting for Holder 1832440610 is 260 millimeter long. The original and the part from RDM Parts 808-HOL-57L are equal in width. The parts is equal in width, 80 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, left model fitting for Holder 1832440610 from holder is 5 millimeter thick. So the part from RDM Parts with number 808-HOL-57L as an alternative for the machine. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Holder 1832440610. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, left model fitting for Holder 1832440610 808-HOL-57L is 100 millimeter. The mounting holes of the 808-HOL-57L have a diameter of 11 millimeter. These holes are used to mount the Blade, left model fitting for Holder 1832440610 to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-HOL-57L fit?

the 808-HOL-57L and 1832440610 fit on holder machinery. The 808-HOL-57L is fitting for these parts: Sicma (Miglianico) 4814783, and Holder 1832440610.
