Blade, right model fitting for Honda F50/65

F50/65 blades for the honda machine

The F50/65 is a blade for a rotary tiller from honda. If you need an alternative, then you can use the 808-HON-10R, which is a fitting solution for your tiller.

Mounting the blades

Generally speaking, tiller blades like the F50/65 and 808-HON-10R are fixed with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-HON-10R should therefore be placed on the right side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the F50/65 and the 808-HON-10R

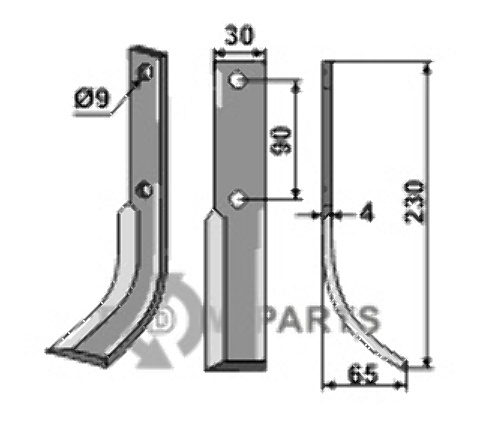

RDM Parts also has the 808-HON-10R Blade, right model fitting for Honda F50/65 with an equal length as the original. The Blade, right model fitting for Honda F50/65 is 230 millimeter long. The original and the part from RDM Parts 808-HON-10R are equal in width. This Blade, right model fitting for Honda F50/65 is 30 millimeter in width. The thickness of Blade, right model fitting for Honda F50/65 indicates something about the wear and tear of a part, but also if this will fit on your machinery. The original Blade, right model fitting for Honda F50/65 from honda is 4 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the honda machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, right model fitting for Honda F50/65 808-HON-10R is 90 millimeter. The mounting holes of the 808-HON-10R have a diameter of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-HON-10R fit?

Comparable to the original with number F50/65 the 808-HON-10R fits for the machines of honda. The 808-HON-10R is fitting for these parts: Ommas 140, and Honda F50/65.
