Blade, left model fitting for Honda F.201
| Product number: | 808-HON-13L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Sovema: | 900111008 |
|---|---|
| Honda: | F.201 |

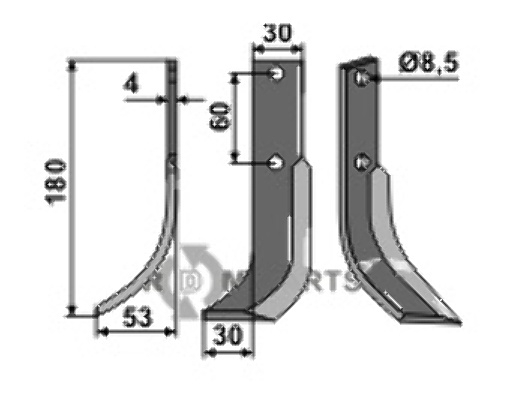

Technical details
| Suitable for brand: | Honda |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 8.5 mm |
| Boring: | 8.5 mm |
| Hole spacing: | 60 mm |
| Lengte: | 180 mm |
| Material Tickness: | 4 mm |
| Mounting: | Left |
| Thickness: | 4 mm |
| Weight: | 0.17 kg |
| Wideness: | 30 mm |
| Working widt: | 53 mm |
F.201 blades for the honda machine
honda tillers use F.201 tiller blades. For these machines, RDM Parts has a fitting alternative in the 808-HON-13L blades.
Mounting the blades
Generally speaking, tiller blades like the F.201 and 808-HON-13L are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-HON-13L is pretty much the same as the original and is placed on the left side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the F.201 and the 808-HON-13L
RDM Parts also has the 808-HON-13L Blade, left model fitting for Honda F.201 with an equal length as the original. The product is thus 180 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-HON-13L are equal in width. This Blade, left model fitting for Honda F.201 is 30 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, left model fitting for Honda F.201 from honda is 4 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Honda F.201. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, left model fitting for Honda F.201 808-HON-13L is 60 millimeter. This 808-HON-13L Blade, left model fitting for Honda F.201 has a mounting hole of 8,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.
On what machines does the 808-HON-13L fit?
the 808-HON-13L and F.201 fit on honda machinery. Use the 808-HON-13L as a fitting replacement for: Sovema 900111008, and Honda F.201.
.€6.47*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
F.201 blades for the honda machine
honda tillers use F.201 tiller blades. For these machines, RDM Parts has a fitting alternative in the 808-HON-13L blades.
Mounting the blades
Generally speaking, tiller blades like the F.201 and 808-HON-13L are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-HON-13L is pretty much the same as the original and is placed on the left side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the F.201 and the 808-HON-13L
RDM Parts also has the 808-HON-13L Blade, left model fitting for Honda F.201 with an equal length as the original. The product is thus 180 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-HON-13L are equal in width. This Blade, left model fitting for Honda F.201 is 30 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, left model fitting for Honda F.201 from honda is 4 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Honda F.201. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of this Blade, left model fitting for Honda F.201 808-HON-13L is 60 millimeter. This 808-HON-13L Blade, left model fitting for Honda F.201 has a mounting hole of 8,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.
On what machines does the 808-HON-13L fit?
the 808-HON-13L and F.201 fit on honda machinery. Use the 808-HON-13L as a fitting replacement for: Sovema 900111008, and Honda F.201.
