Blade, left model fitting for Huard 226091
| Product number: | 808-HUA-01L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Berti: | AP-00889 |
|---|---|
| Huard: | 226091 |

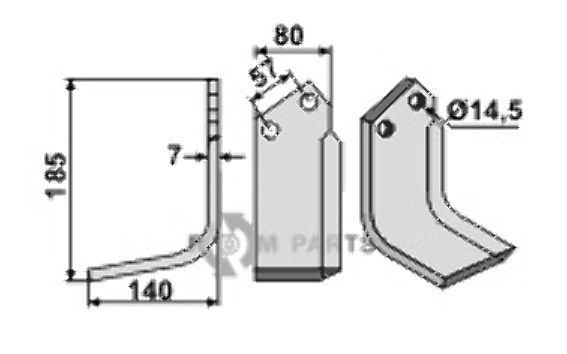

Technical details
| Suitable for brand: | Huard |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 14.5 mm |
| Boring: | 14.5 mm |
| Hole spacing: | 57 mm |
| Lengte: | 185 mm |
| Material Tickness: | 7 mm |
| Mounting: | Left |
| Thickness: | 7 mm |
| Weight: | 1.1 kg |
| Wideness: | 80 mm |
| Working widt: | 140 mm |
226091 blades for the huard machine
The 226091 is a blade for a rotary tiller from huard. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-HUA-01L, which is comparable with the original.
Mounting the blades
Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. This part is placed on the left side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.
Specifications of the 226091 and the 808-HUA-01L
The original part for Blade, left model fitting for Huard 226091 has a comparable length as our fitting original with number 808-HUA-01L. With its 185 millimeter it is a good alternative to the original. The width of the 808-HUA-01L is equal to the original. This Blade, left model fitting for Huard 226091 is 80 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Blade, left model fitting for Huard 226091 with part number 808-HUA-01L has a thickness of 7 millimeter. Since this is equal to the parts of RDM Parts, the 808-HUA-01L fits as an alternative for the original. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Huard 226091. These mounting holes ensure a strong connection of the part to the huard machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, left model fitting for Huard 226091 808-HUA-01L has a hole spacing of 57 millimeter. The 808-HUA-01L and the original with are mounted with a mounting hole of 14,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-HUA-01L fit?
Like the original with number 226091, the 808-HUA-01L Blade, left model fitting for Huard 226091 fits on the machines of huard. The 808-HUA-01L is fitting for these parts: Berti AP-00889, and Huard 226091.
.€10.91*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
226091 blades for the huard machine
The 226091 is a blade for a rotary tiller from huard. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-HUA-01L, which is comparable with the original.
Mounting the blades
Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. This part is placed on the left side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.
Specifications of the 226091 and the 808-HUA-01L
The original part for Blade, left model fitting for Huard 226091 has a comparable length as our fitting original with number 808-HUA-01L. With its 185 millimeter it is a good alternative to the original. The width of the 808-HUA-01L is equal to the original. This Blade, left model fitting for Huard 226091 is 80 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The Blade, left model fitting for Huard 226091 with part number 808-HUA-01L has a thickness of 7 millimeter. Since this is equal to the parts of RDM Parts, the 808-HUA-01L fits as an alternative for the original. The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Huard 226091. These mounting holes ensure a strong connection of the part to the huard machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, left model fitting for Huard 226091 808-HUA-01L has a hole spacing of 57 millimeter. The 808-HUA-01L and the original with are mounted with a mounting hole of 14,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.
On what machines does the 808-HUA-01L fit?
Like the original with number 226091, the 808-HUA-01L Blade, left model fitting for Huard 226091 fits on the machines of huard. The 808-HUA-01L is fitting for these parts: Berti AP-00889, and Huard 226091.
