Rotary tine, right model fitting for Breviglieri 0071091D

0071091D rotary harrow tines for the breviglieri machine

RDM Parts has a fitting alternative for the 0071091D from breviglieri in the shape of the 808-MAS-25R Rotary tine, right model fitting for Breviglieri 0071091D.

Mounting rotary harrow tines

Usually a part is fixed to a machine with a bolt. A rotary harrow tine does not simply fit all assembly points. The tines have a rotation direction which is based on the placement of the blades edge. In case of the 0071091D and our RDM Parts alternative 808-MAS-25R, the tine is mounted on the right side.

Specifications of the 0071091D and the 808-MAS-25R

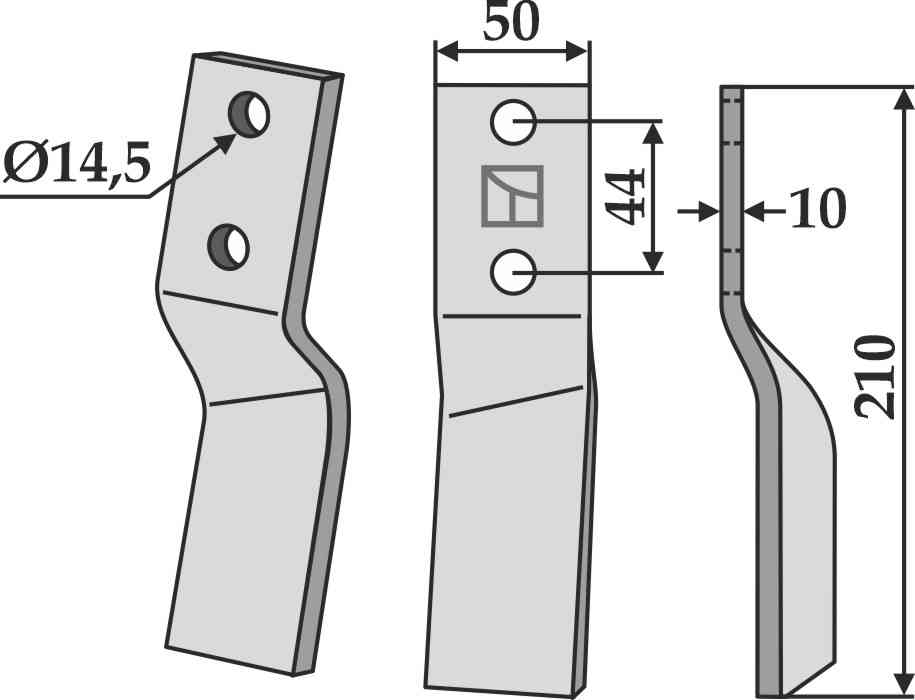

The original part for Rotary tine, right model fitting for Breviglieri 0071091D has a comparable length as our fitting original with number 808-MAS-25R. The Rotary tine, right model fitting for Breviglieri 0071091D is 210 millimeter long. The width of the 808-MAS-25R is equal to the original. The width measures 50 millimeter. The thickness of the Rotary tine, right model fitting for Breviglieri 0071091D is important for the way the part fits on the machine. The Rotary tine, right model fitting for Breviglieri 0071091D with part number 808-MAS-25R has a thickness of 10 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of the 808-MAS-25R from RDM Parts is equal to the original with number 0071091D and the distance measures 44 millimeter. This 808-MAS-25R Rotary tine, right model fitting for Breviglieri 0071091D has a mounting hole of 14,5 millimeter. These holes are used to mount the Rotary tine, right model fitting for Breviglieri 0071091D to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-MAS-25R fit?

Comparable to the original with number 0071091D the 808-MAS-25R fits for the machines of breviglieri. The 808-MAS-25R is fitting for these parts: Breviglieri 0071091D, and Maschio / Gaspardo 24100414.

Do you have any questions about the 0071091D van breviglieri

If you have any questions about the parts from RDM Parts, including the 808-MAS-25R or the original with number 0071091D, then contact our product specialists. We like to find answers to your challenges.
