Blade, right model fitting for Muratori 12013701
| Product number: | 808-MUR-17R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Maletti: | 6401077 |
|---|---|
| Muratori: | 12013701 |

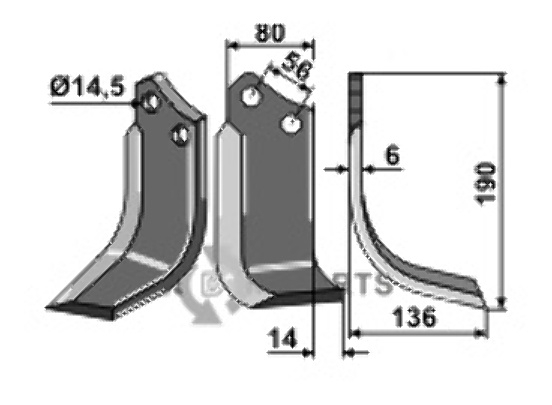

Technical details
| Suitable for brand: | Muratori |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 14.5 mm |
| Boring: | 14.5 mm |
| Hole spacing: | 56 mm |
| Lengte: | 190 mm |
| Material Tickness: | 6 mm |
| Mounting: | Right |
| Thickness: | 6 mm |
| Weight: | 0.86 kg |
| Wideness: | 80 mm |
| Working widt: | 136 mm |
12013701 blades for the muratori machine
muratori tillers use 12013701 tiller blades. For these machines, RDM Parts has a fitting alternative in the 808-MUR-17R blades.
Mounting the tiller blades
To mount the 808-MUR-17R and the original 12013701 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-MUR-17R should therefore be placed on the right side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the 12013701 and the 808-MUR-17R
RDM Parts also has the 808-MUR-17R Blade, right model fitting for Muratori 12013701 with an equal length as the original. The product is thus 190 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-MUR-17R are equal in width. The parts is equal in width, 80 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, right model fitting for Muratori 12013701 with part number 808-MUR-17R has a thickness of 6 millimeter. So the part from RDM Parts with number 808-MUR-17R as an alternative for the machine.
The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the muratori machinery. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of the 808-MUR-17R from RDM Parts is equal to the original with number 12013701 and the distance measures 56 millimeter. The 808-MUR-17R and the original with are mounted with a mounting hole of 14,5 millimeter. These holes are used to mount the Blade, right model fitting for Muratori 12013701 to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-MUR-17R fit?
Comparable to the original with number 12013701 the 808-MUR-17R fits for the machines of muratori. The 808-MUR-17R is fitting for these parts: Maletti 6401077, and Muratori 12013701.
.€8.10 * €9.80
€9.80 incl. VAT
€9.80*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, right model fitting for Muratori 12013701"
12013701 blades for the muratori machine
muratori tillers use 12013701 tiller blades. For these machines, RDM Parts has a fitting alternative in the 808-MUR-17R blades.
Mounting the tiller blades
To mount the 808-MUR-17R and the original 12013701 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-MUR-17R should therefore be placed on the right side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the 12013701 and the 808-MUR-17R
RDM Parts also has the 808-MUR-17R Blade, right model fitting for Muratori 12013701 with an equal length as the original. The product is thus 190 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-MUR-17R are equal in width. The parts is equal in width, 80 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, right model fitting for Muratori 12013701 with part number 808-MUR-17R has a thickness of 6 millimeter. So the part from RDM Parts with number 808-MUR-17R as an alternative for the machine.
The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the muratori machinery. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of the 808-MUR-17R from RDM Parts is equal to the original with number 12013701 and the distance measures 56 millimeter. The 808-MUR-17R and the original with are mounted with a mounting hole of 14,5 millimeter. These holes are used to mount the Blade, right model fitting for Muratori 12013701 to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-MUR-17R fit?
Comparable to the original with number 12013701 the 808-MUR-17R fits for the machines of muratori. The 808-MUR-17R is fitting for these parts: Maletti 6401077, and Muratori 12013701.
