Blade, right model fitting for Nibbi Bruno G119
| Product number: | 808-NIB-06R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| van Lengerich: | 69849 |
|---|---|
| Nibbi Bruno: | G119 |

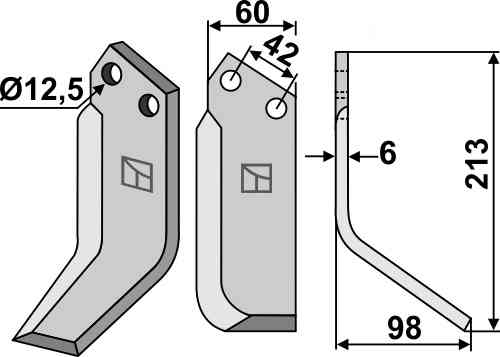

Technical details
| Suitable for brand: | Nibbi Bruno |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 12.5 mm |
| Boring: | 12.5 mm |
| Hole spacing: | 42 mm |
| Lengte: | 213 mm |
| Material Tickness: | 6 mm |
| Mounting: | Right |
| Thickness: | 6 mm |
| Weight: | 0.6 kg |
| Wideness: | 60 mm |
| Working widt: | 98 mm |
G119 blades for the nibbi bruno machine
G119 tiller blades fit on the rotary tillers of nibbi bruno. If you need an alternative, then you can use the 808-NIB-06R, which is a fitting solution for your tiller.
Mounting the blades
Generally speaking, tiller blades like the G119 and 808-NIB-06R are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-NIB-06R and the original counterpart, they are placed at the right side. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the G119 and the 808-NIB-06R
The length of the Blade, right model fitting for Nibbi Bruno G119 with RDM number 808-NIB-06R is equal to the length of the original part. The Blade, right model fitting for Nibbi Bruno G119 is 213 millimeter long. The original and the part from RDM Parts 808-NIB-06R are equal in width. This Blade, right model fitting for Nibbi Bruno G119 is 60 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, right model fitting for Nibbi Bruno G119 from nibbi bruno is 6 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-NIB-06R from RDM Parts is equal to the original with number G119 and the distance measures 42 millimeter. The mounting holes of the 808-NIB-06R have a diameter of 12,5 millimeter. These holes are used to mount the Blade, right model fitting for Nibbi Bruno G119 to the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-NIB-06R fit?
Comparable to the original with number G119 the 808-NIB-06R fits for the machines of nibbi bruno. Use the 808-NIB-06R as a fitting replacement for: van Lengerich 69849, and Nibbi Bruno G119.
.€10.39*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
G119 blades for the nibbi bruno machine
G119 tiller blades fit on the rotary tillers of nibbi bruno. If you need an alternative, then you can use the 808-NIB-06R, which is a fitting solution for your tiller.
Mounting the blades
Generally speaking, tiller blades like the G119 and 808-NIB-06R are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-NIB-06R and the original counterpart, they are placed at the right side. Blades are placed in this alternating manner to optimally plough through the soil.
Specifications of the G119 and the 808-NIB-06R
The length of the Blade, right model fitting for Nibbi Bruno G119 with RDM number 808-NIB-06R is equal to the length of the original part. The Blade, right model fitting for Nibbi Bruno G119 is 213 millimeter long. The original and the part from RDM Parts 808-NIB-06R are equal in width. This Blade, right model fitting for Nibbi Bruno G119 is 60 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, right model fitting for Nibbi Bruno G119 from nibbi bruno is 6 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-NIB-06R from RDM Parts is equal to the original with number G119 and the distance measures 42 millimeter. The mounting holes of the 808-NIB-06R have a diameter of 12,5 millimeter. These holes are used to mount the Blade, right model fitting for Nibbi Bruno G119 to the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-NIB-06R fit?
Comparable to the original with number G119 the 808-NIB-06R fits for the machines of nibbi bruno. Use the 808-NIB-06R as a fitting replacement for: van Lengerich 69849, and Nibbi Bruno G119.
