Blade, left model fitting for Nibbi Bruno K4303240
| Product number: | 808-NIB-07L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Quivogne: | 1321/94 |
|---|---|
| Nibbi Bruno: | K4303240 |
Technical details
| Suitable for brand: | Nibbi Bruno |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 42 mm |
| Lengte: | 170 mm |
| Material Tickness: | 6 mm |
| Mounting: | Left |
| Thickness: | 6 mm |
| Weight: | 0.35 kg |
| Wideness: | 50 mm |
| Working widt: | 70 mm |
K4303240 blades for the nibbi bruno machine
K4303240 tiller blades fit on the rotary tillers of nibbi bruno. For these machines, RDM Parts has a fitting alternative in the 808-NIB-07L blades.
Mounting the blades
Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-NIB-07L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

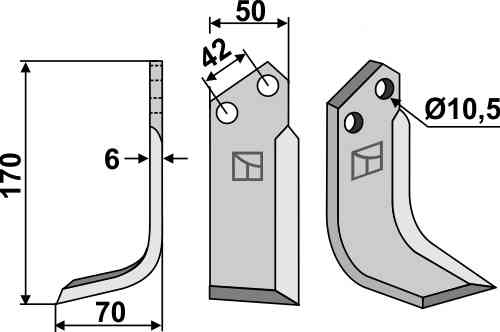

Specifications of the K4303240 and the 808-NIB-07L
The Blade, left model fitting for Nibbi Bruno K4303240 from nibbi bruno is just as long as the 808-NIB-07L from RDM Parts. The length of the part is 170 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-NIB-07L are equal in width. This Blade, left model fitting for Nibbi Bruno K4303240 is 50 millimeter in width. The thickness of the Blade, left model fitting for Nibbi Bruno K4303240 is important for the way the part fits on the machine. The K4303240 from nibbi bruno has a thickness of 6 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Nibbi Bruno K4303240. With these mounting holes the part can be attached to the machine from nibbi bruno. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, left model fitting for Nibbi Bruno K4303240 808-NIB-07L is 42 millimeter. The mounting holes of the 808-NIB-07L have a diameter of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.On what machines does the 808-NIB-07L fit?
Comparable to the original with number K4303240 the 808-NIB-07L fits for the machines of nibbi bruno. The 808-NIB-07L is fitting for these parts: Quivogne 1321/94, and Nibbi Bruno K4303240.
€9.09*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
K4303240 blades for the nibbi bruno machine
K4303240 tiller blades fit on the rotary tillers of nibbi bruno. For these machines, RDM Parts has a fitting alternative in the 808-NIB-07L blades.
Mounting the blades
Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-NIB-07L should therefore be placed on the left side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.
Specifications of the K4303240 and the 808-NIB-07L
The Blade, left model fitting for Nibbi Bruno K4303240 from nibbi bruno is just as long as the 808-NIB-07L from RDM Parts. The length of the part is 170 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-NIB-07L are equal in width. This Blade, left model fitting for Nibbi Bruno K4303240 is 50 millimeter in width. The thickness of the Blade, left model fitting for Nibbi Bruno K4303240 is important for the way the part fits on the machine. The K4303240 from nibbi bruno has a thickness of 6 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Nibbi Bruno K4303240. With these mounting holes the part can be attached to the machine from nibbi bruno. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, left model fitting for Nibbi Bruno K4303240 808-NIB-07L is 42 millimeter. The mounting holes of the 808-NIB-07L have a diameter of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some parts have two or more mounting holes to fix it to the machine.On what machines does the 808-NIB-07L fit?
Comparable to the original with number K4303240 the 808-NIB-07L fits for the machines of nibbi bruno. The 808-NIB-07L is fitting for these parts: Quivogne 1321/94, and Nibbi Bruno K4303240.
Properties
| Product number: | 808-NIB-07L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Quivogne: | 1321/94 |
|---|---|
| Nibbi Bruno: | K4303240 |
Technical details
| Suitable for brand: | Nibbi Bruno |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 42 mm |
| Lengte: | 170 mm |
| Material Tickness: | 6 mm |
| Mounting: | Left |
| Thickness: | 6 mm |
| Weight: | 0.35 kg |
| Wideness: | 50 mm |
| Working widt: | 70 mm |
