Blade, right model fitting for Nibbi Bruno K4303230

K4303230 blades for the nibbi bruno machine

The K4303230 is a blade for a rotary tiller from nibbi bruno. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-NIB-07R.

Mounting the blades

Generally speaking, tiller blades like the K4303230 and 808-NIB-07R are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-NIB-07R should therefore be placed on the right side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

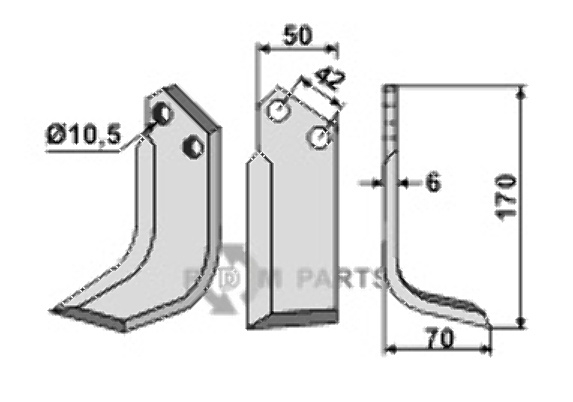

Specifications of the K4303230 and the 808-NIB-07R

The length of the Blade, right model fitting for Nibbi Bruno K4303230 with RDM number 808-NIB-07R is equal to the length of the original part. With its 170 millimeter it is a good alternative to the original. The original and the part from RDM Parts 808-NIB-07R are equal in width. The parts is equal in width, 50 millimeter to be exact. The thickness of the Blade, right model fitting for Nibbi Bruno K4303230 is important for the way the part fits on the machine. The Blade, right model fitting for Nibbi Bruno K4303230 with part number 808-NIB-07R has a thickness of 6 millimeter. So the part from RDM Parts with number 808-NIB-07R as an alternative for the machine. The hole spacing measures the distance between the two mounting holes on the Blade, right model fitting for Nibbi Bruno K4303230. These mounting holes ensure a strong connection of the part to the nibbi bruno machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-NIB-07R from RDM Parts is equal to the original with number K4303230 and the distance measures 42 millimeter. This 808-NIB-07R Blade, right model fitting for Nibbi Bruno K4303230 has a mounting hole of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-NIB-07R fit?

Comparable to the original with number K4303230 the 808-NIB-07R fits for the machines of nibbi bruno. The 808-NIB-07R is fitting for these parts: Kuhn 360.150.91, and Nibbi Bruno K4303230.
