Blade, right model fitting for Rabe 8415.14.01
| Product number: | 808-RAB-03R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Votex: | 45.03.010 |
|---|---|
| Rabe: | 8415.14.01 |

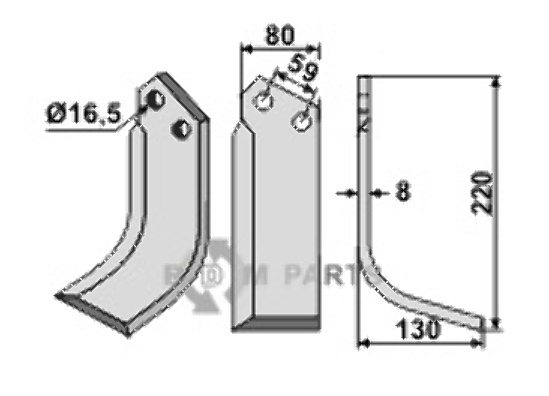

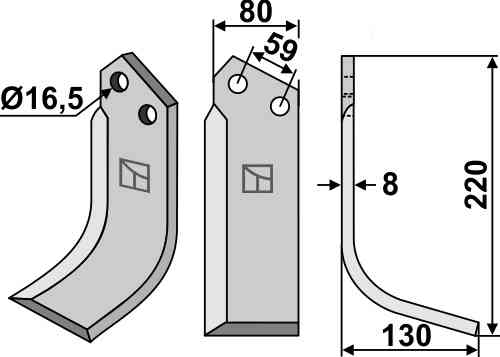

Technical details
| Suitable for brand: | Rabe |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 16.5 mm |
| Boring: | 16.5 mm |
| Hole spacing: | 59 mm |
| Lengte: | 220 mm |
| Material Tickness: | 8 mm |
| Mounting: | Right |
| Thickness: | 8 mm |
| Weight: | 1.19 kg |
| Wideness: | 80 mm |
| Working widt: | 130 mm |
8415.14.01 blades for the rabe machine
rabe tiller blades 8415.14.01 fit on the machines of the same brand. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-RAB-03R, which is comparable with the original.
Mounting the blades
Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. This part is placed on the right side. The tiller blades are mounted in an alternating way.
Specifications of the 8415.14.01 and the 808-RAB-03R
The Blade, right model fitting for Rabe 8415.14.01 from rabe is just as long as the 808-RAB-03R from RDM Parts. The product is thus 220 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-RAB-03R are equal in width. The width measures 80 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, right model fitting for Rabe 8415.14.01 with part number 808-RAB-03R has a thickness of 8 millimeter. So the part from RDM Parts with number 808-RAB-03R as an alternative for the machine.
The hole spacing of Blade, right model fitting for Rabe 8415.14.01 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the rabe machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, right model fitting for Rabe 8415.14.01 808-RAB-03R has a hole spacing of 59 millimeter. The 808-RAB-03R and the original with are mounted with a mounting hole of 16,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-RAB-03R fit?
the 808-RAB-03R and 8415.14.01 fit on rabe machinery. Use the 808-RAB-03R as a fitting replacement for: Votex 45.03.010, and Rabe 8415.14.01.
.€13.99 * €16.93
€16.93 incl. VAT
€16.93*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, right model fitting for Rabe 8415.14.01"
8415.14.01 blades for the rabe machine
rabe tiller blades 8415.14.01 fit on the machines of the same brand. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-RAB-03R, which is comparable with the original.
Mounting the blades
Tiller blades are fastened with a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. This part is placed on the right side. The tiller blades are mounted in an alternating way.
Specifications of the 8415.14.01 and the 808-RAB-03R
The Blade, right model fitting for Rabe 8415.14.01 from rabe is just as long as the 808-RAB-03R from RDM Parts. The product is thus 220 millimeter long and is a fitting replacement for your machinery. The original and the part from RDM Parts 808-RAB-03R are equal in width. The width measures 80 millimeter. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, right model fitting for Rabe 8415.14.01 with part number 808-RAB-03R has a thickness of 8 millimeter. So the part from RDM Parts with number 808-RAB-03R as an alternative for the machine.
The hole spacing of Blade, right model fitting for Rabe 8415.14.01 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the rabe machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. This Blade, right model fitting for Rabe 8415.14.01 808-RAB-03R has a hole spacing of 59 millimeter. The 808-RAB-03R and the original with are mounted with a mounting hole of 16,5 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-RAB-03R fit?
the 808-RAB-03R and 8415.14.01 fit on rabe machinery. Use the 808-RAB-03R as a fitting replacement for: Votex 45.03.010, and Rabe 8415.14.01.
