Hard metal faced tine for rotary harrows, right model fitting for Rabe 8411.62.07

8411.62.07 rotary harrow tines for the rabe machine

You can replace your 8411.62.07 Hard metal faced tine for rotary harrows, right model fitting for Rabe 8411.62.07 with an alternative from RDM Parts 808-RH95DER-HR.

Mounting rotary harrow tines

To mount rotary harrow tines in the first place you will need mounting materials. Besides that it is good to note that not every tine can be mounted universally. The tines have a rotation direction which is based on the placement of the blades edge. In case of the 8411.62.07 and our fitting alternative this rotary harrow tine fits on the right side.

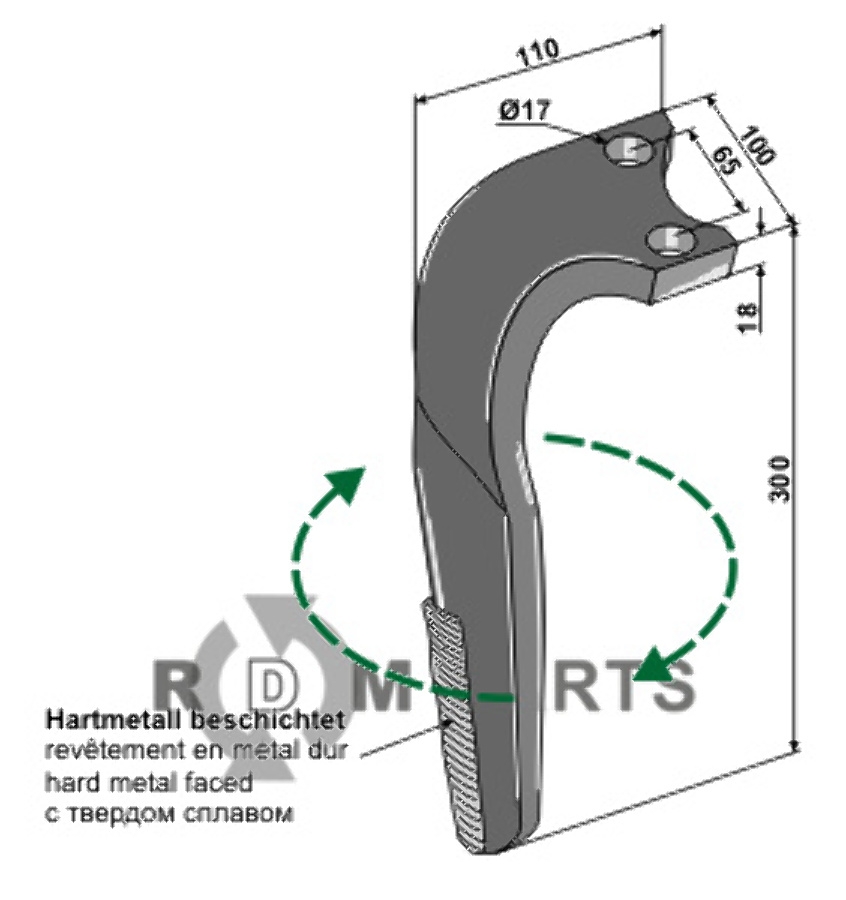

Specifications of the 8411.62.07 and the 808-RH95DER-HR

RDM Parts also has the 808-RH95DER-HR Hard metal faced tine for rotary harrows, right model fitting for Rabe 8411.62.07 with an equal length as the original. The length of the part is 300 millimeter and this makes it a fitting alternative for the original. The width of the 808-RH95DER-HR is equal to the original. This Hard metal faced tine for rotary harrows, right model fitting for Rabe 8411.62.07 is 100 millimeter in width. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The 8411.62.07 from rabe has a thickness of 18 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. These mounting holes ensure a strong connection of the part to the rabe machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of the 808-RH95DER-HR from RDM Parts is equal to the original with number 8411.62.07 and the distance measures 65 millimeter. The 808-RH95DER-HR and the original with are mounted with a mounting hole of 17 millimeter. The mounting holes help to make a connection between the part and the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-RH95DER-HR fit?

Like the original with number 8411.62.07, the 808-RH95DER-HR Hard metal faced tine for rotary harrows, right model fitting for Rabe 8411.62.07 fits on the machines of rabe. The 808-RH95DER-HR is fitting for these parts: Rabe 8411.62.07.

Do you have any questions about the 8411.62.07 van rabe

You can contact our product specialists with questions about the 808-RH95DER-HR or 8411.62.07 They will find a fitting answer to your question.
