Blade, left model

71.901.75 blades for the sicma miglianico machine

sicma miglianico tillers use 71.901.75 tiller blades. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-SIM-02L.

Mounting the tiller blades

To mount the 808-SIM-02L and the original 71.901.75 you need to use assembly materials like a bolt. The rotation direction is also of importance when seeing if a part will fit on the assembly point in mind. The 808-SIM-02L should therefore be placed on the left side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the 71.901.75 and the 808-SIM-02L

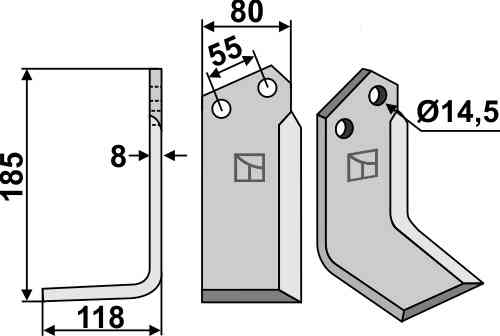

The original part for Blade, left model has a comparable length as our fitting original with number 808-SIM-02L. The Blade, left model is 185 millimeter long. The width of the 808-SIM-02L is equal to the original. This Blade, left model is 80 millimeter in width. The thickness of the Blade, left model is important for the way the part fits on the machine. The original Blade, left model from sicma miglianico is 8 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, left model 808-SIM-02L is 55 millimeter. The mounting holes of the 808-SIM-02L have a diameter of 14,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-SIM-02L fit?

Comparable to the original with number 71.901.75 the 808-SIM-02L fits for the machines of sicma miglianico. The 808-SIM-02L is fitting for these parts: Bomford 71.901.75, and Sicma (Miglianico) 4814517.
