Blade, left model fitting for Solo 5043158

5043158 blades for the solo machine

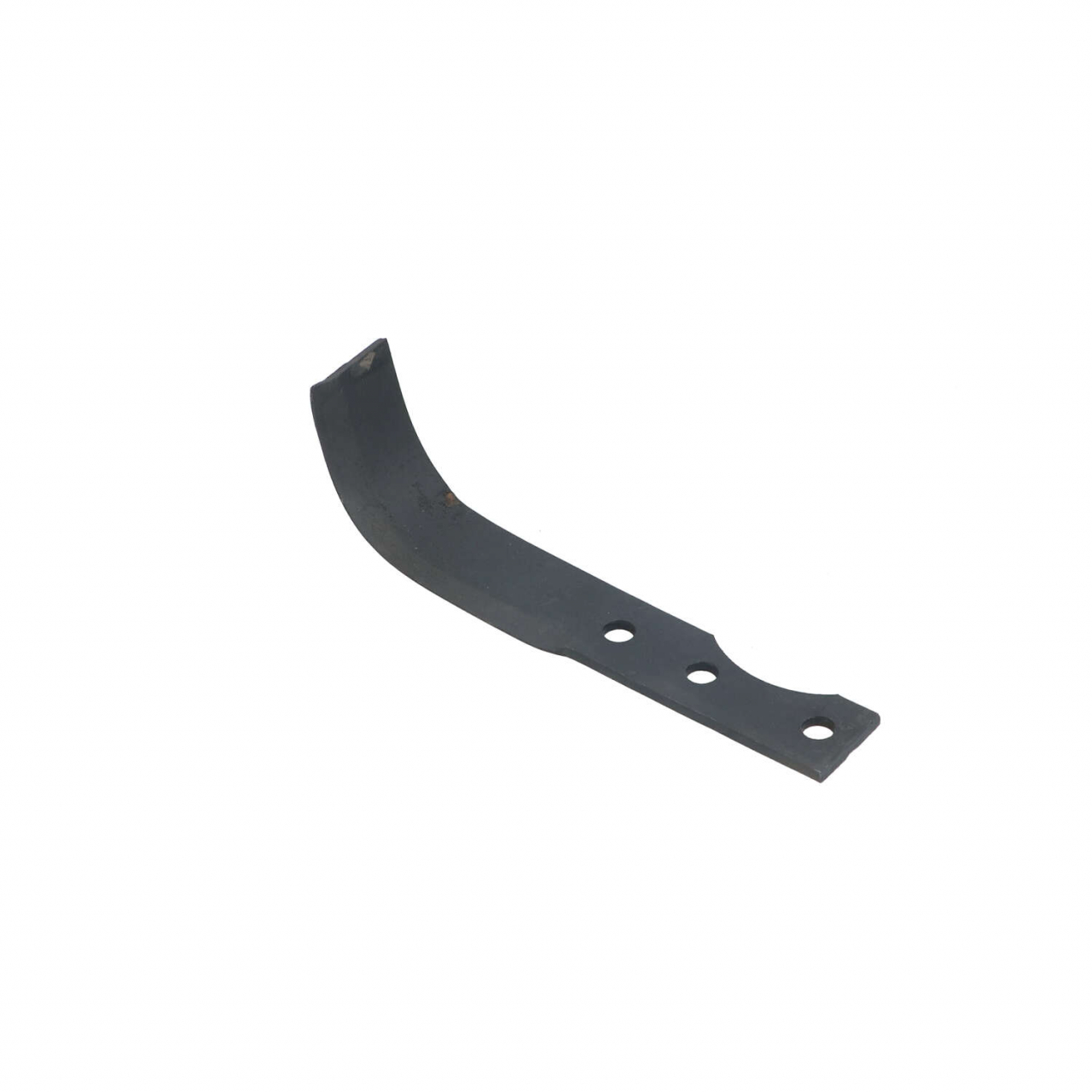

5043158 tiller blades fit on the rotary tillers of solo. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-SOL-02L, which is comparable with the original.

Mounting the blades

Generally speaking, tiller blades like the 5043158 and 808-SOL-02L are fixed with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. In case of the 808-SOL-02L and the original counterpart, they are placed at the left side. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

Specifications of the 5043158 and the 808-SOL-02L

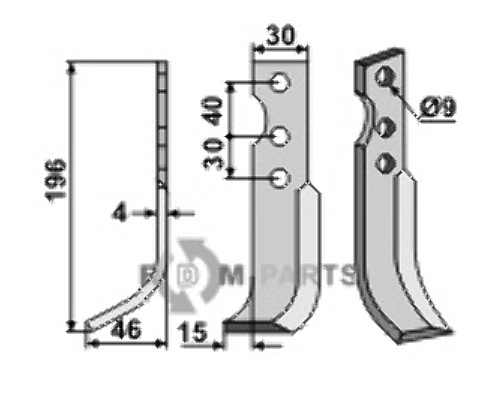

RDM Parts also has the 808-SOL-02L Blade, left model fitting for Solo 5043158 with an equal length as the original. The length of the part is 196 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-SOL-02L are equal in width. The parts is equal in width, 30 millimeter to be exact. The thickness of the Blade, left model fitting for Solo 5043158 is important for the way the part fits on the machine. 4 millimeter thick is the Blade, left model fitting for Solo 5043158 from solo with the original part number 5043158. Since this is equal to the parts of RDM Parts, the 808-SOL-02L fits as an alternative for the original. The hole spacing of Blade, left model fitting for Solo 5043158 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the solo machinery. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, left model fitting for Solo 5043158 808-SOL-02L is 30 millimeter. This 808-SOL-02L Blade, left model fitting for Solo 5043158 has a mounting hole of 9 millimeter. These holes are used to mount the Blade, left model fitting for Solo 5043158 to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-SOL-02L fit?

Comparable to the original with number 5043158 the 808-SOL-02L fits for the machines of solo. Use the 808-SOL-02L as a fitting replacement for: S.M.A. SM 44, and Solo 5043158.
