Blade, right model fitting for Solo 5043162

5043162 blades for the solo machine

The 5043162 is a blade for a rotary tiller from solo. When you are searching for an alternative to the original parts, then RDM Parts can provide them in the shape of the 808-SOL-02R.

Mounting the blades

The 5043162 and our fitting alternative 808-SOL-02R are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-SOL-02R and the original counterpart, they are placed at the right side. The tiller blades are mounted in an alternating way.

Specifications of the 5043162 and the 808-SOL-02R

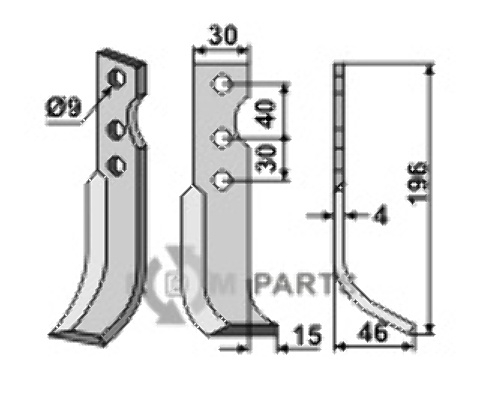

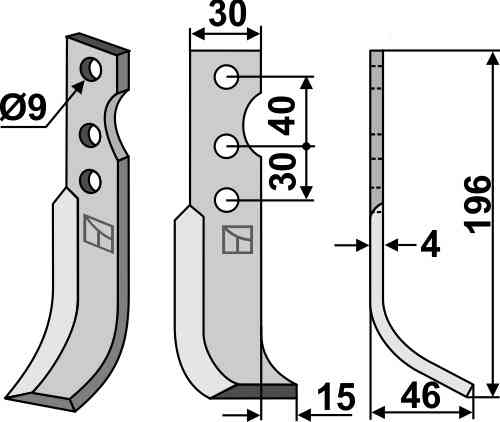

The original part for Blade, right model fitting for Solo 5043162 has a comparable length as our fitting original with number 808-SOL-02R. With its 196 millimeter it is a good alternative to the original. The width of the 808-SOL-02R is equal to the original. The parts is equal in width, 30 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The 5043162 from solo has a thickness of 4 millimeter. Since this is equal to the parts of RDM Parts, the 808-SOL-02R fits as an alternative for the original. The hole spacing of Blade, right model fitting for Solo 5043162 is measured by the distance between the mounting holes. These mounting holes ensure a strong connection of the part to the solo machinery. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-SOL-02R from RDM Parts is equal to the original with number 5043162 and the distance measures 30 millimeter. The 808-SOL-02R and the original with are mounted with a mounting hole of 9 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-SOL-02R fit?

the 808-SOL-02R and 5043162 fit on solo machinery. The 808-SOL-02R is fitting for these parts: Müthing 1101011, and Solo 5043162.
