Blade, right model fitting for Muratori 12000500

12000500 blades for the muratori machine

The 12000500 is a blade for a rotary tiller from muratori. If you need an alternative, then you can use the 808-SOV-02R, which is a fitting solution for your tiller.

Mounting the blades

The 12000500 and our fitting alternative 808-SOV-02R are secured in place with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-SOV-02R is pretty much the same as the original and is placed on the right side. The tiller blades are mounted in an alternating way.

Specifications of the 12000500 and the 808-SOV-02R

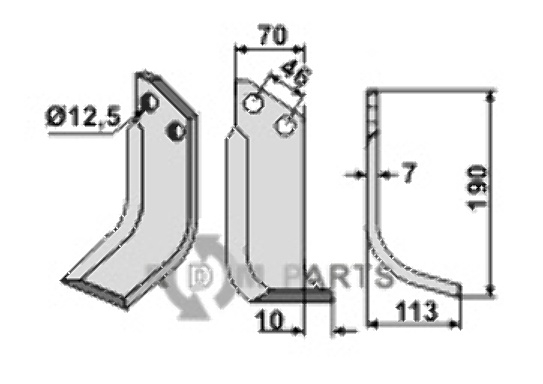

RDM Parts also has the 808-SOV-02R Blade, right model fitting for Muratori 12000500 with an equal length as the original. With its 190 millimeter it is a good alternative to the original. The width of the 808-SOV-02R is equal to the original. The parts is equal in width, 70 millimeter to be exact. The thicker a product is the more it can handle in terms of stress, can be taken as a general rule of thumb. The original Blade, right model fitting for Muratori 12000500 from muratori is 7 millimeter thick. Since this is equal to the parts of RDM Parts, the 808-SOV-02R fits as an alternative for the original. The hole spacing of Blade, right model fitting for Muratori 12000500 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. The hole spacing of this Blade, right model fitting for Muratori 12000500 808-SOV-02R is 46 millimeter. The 808-SOV-02R and the original with are mounted with a mounting hole of 12,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-SOV-02R fit?

Comparable to the original with number 12000500 the 808-SOV-02R fits for the machines of muratori. Use the 808-SOV-02R as a fitting replacement for: Muratori 12000500, and Sovema 900111001.
