Blade, right model fitting for Muratori 1200013
| Product number: | 808-SOV-03R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Taarup: | 49303000 |
|---|---|
| Muratori: | 1200013 |
| Sovema: | 900111003 |
| Ommas: | 140 |
Technical details
| Suitable for brand: | Muratori |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 14.5 mm |
| Boring: | 14.5 mm |
| Hole spacing: | 46 mm |
| Lengte: | 190 mm |
| Material Tickness: | 7 mm |
| Mounting: | Right |
| Thickness: | 7 mm |
| Weight: | 0.8 kg |
| Wideness: | 70 mm |
| Working widt: | 113 mm |
1200013 blades for the muratori machine
muratori tiller blades 1200013 fit on the machines of the same brand. If you need an alternative, then you can use the 808-SOV-03R, which is a fitting solution for your tiller.
Mounting the tiller blades
To mount the 808-SOV-03R and the original 1200013 you need to use assembly materials like a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-SOV-03R should therefore be placed on the right side to rotate correctly. The tiller blades are mounted in an alternating way.

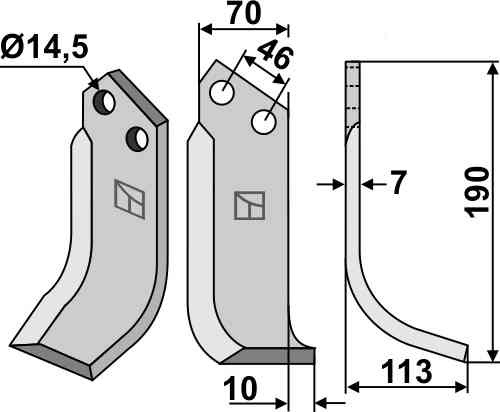

Specifications of the 1200013 and the 808-SOV-03R
RDM Parts also has the 808-SOV-03R Blade, right model fitting for Muratori 1200013 with an equal length as the original. The product is thus 190 millimeter long and is a fitting replacement for your machinery. The width of the 808-SOV-03R is equal to the original. This Blade, right model fitting for Muratori 1200013 is 70 millimeter in width. The thickness of the Blade, right model fitting for Muratori 1200013 is important for the way the part fits on the machine. The original Blade, right model fitting for Muratori 1200013 from muratori is 7 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of the 808-SOV-03R from RDM Parts is equal to the original with number 1200013 and the distance measures 46 millimeter. The 808-SOV-03R and the original with are mounted with a mounting hole of 14,5 millimeter. These holes are used to mount the Blade, right model fitting for Muratori 1200013 to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-SOV-03R fit?
Comparable to the original with number 1200013 the 808-SOV-03R fits for the machines of muratori. The 808-SOV-03R is fitting for these parts: Taarup 49303000, Muratori 1200013, Sovema 900111003, and Ommas 140.
.€9.18 * €11.11
€11.11 incl. VAT
€11.11*
- Free delivery*, from €450 / £385 (excl. VAT)
- Standard delivery, 1 - 2 working days
- Express delivery, within 24 hours
- Discounts, for companies
Product information "Blade, right model fitting for Muratori 1200013"
1200013 blades for the muratori machine
muratori tiller blades 1200013 fit on the machines of the same brand. If you need an alternative, then you can use the 808-SOV-03R, which is a fitting solution for your tiller.
Mounting the tiller blades
To mount the 808-SOV-03R and the original 1200013 you need to use assembly materials like a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-SOV-03R should therefore be placed on the right side to rotate correctly. The tiller blades are mounted in an alternating way.
Specifications of the 1200013 and the 808-SOV-03R
RDM Parts also has the 808-SOV-03R Blade, right model fitting for Muratori 1200013 with an equal length as the original. The product is thus 190 millimeter long and is a fitting replacement for your machinery. The width of the 808-SOV-03R is equal to the original. This Blade, right model fitting for Muratori 1200013 is 70 millimeter in width. The thickness of the Blade, right model fitting for Muratori 1200013 is important for the way the part fits on the machine. The original Blade, right model fitting for Muratori 1200013 from muratori is 7 millimeter thick. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The distance between the two mounting holes is also called the hole spacing. With these holes the part can be attached to the machine. Watch closely if the spacing between the holes is comparable with the part that is to be replaced, else this won’t fit the machine. The hole spacing of the 808-SOV-03R from RDM Parts is equal to the original with number 1200013 and the distance measures 46 millimeter. The 808-SOV-03R and the original with are mounted with a mounting hole of 14,5 millimeter. These holes are used to mount the Blade, right model fitting for Muratori 1200013 to the machine. Some of the parts have more than one mounting hole to mount it to the machine.On what machines does the 808-SOV-03R fit?
Comparable to the original with number 1200013 the 808-SOV-03R fits for the machines of muratori. The 808-SOV-03R is fitting for these parts: Taarup 49303000, Muratori 1200013, Sovema 900111003, and Ommas 140.
.Properties
| Product number: | 808-SOV-03R |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Taarup: | 49303000 |
|---|---|
| Muratori: | 1200013 |
| Sovema: | 900111003 |
| Ommas: | 140 |
Technical details
| Suitable for brand: | Muratori |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 14.5 mm |
| Boring: | 14.5 mm |
| Hole spacing: | 46 mm |
| Lengte: | 190 mm |
| Material Tickness: | 7 mm |
| Mounting: | Right |
| Thickness: | 7 mm |
| Weight: | 0.8 kg |
| Wideness: | 70 mm |
| Working widt: | 113 mm |
