Blade, right model fitting for Muratori 1200015

1200015 blades for the muratori machine

1200015 tiller blades fit on the rotary tillers of muratori. For these machines, RDM Parts has a fitting alternative in the 808-SOV-04R blades.

Mounting the tiller blades

To mount the 808-SOV-04R and the original 1200015 you need to use assembly materials like a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. This part is placed on the right side. The tiller blades are mounted in an alternating way.

Specifications of the 1200015 and the 808-SOV-04R

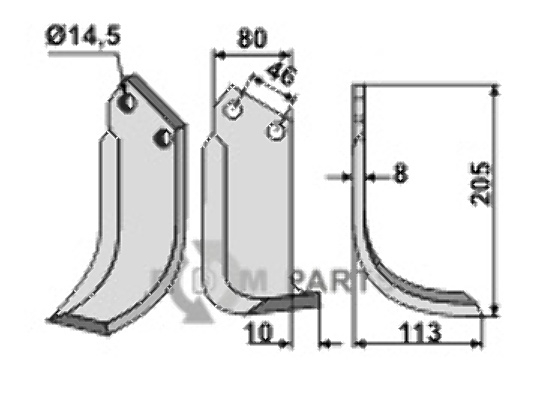

The original part for Blade, right model fitting for Muratori 1200015 has a comparable length as our fitting original with number 808-SOV-04R. The length of the part is 205 millimeter and this makes it a fitting alternative for the original. The original and the part from RDM Parts 808-SOV-04R are equal in width. The width measures 80 millimeter. The thickness of the Blade, right model fitting for Muratori 1200015 is important for the way the part fits on the machine. The Blade, right model fitting for Muratori 1200015 with part number 808-SOV-04R has a thickness of 8 millimeter. The alternative that is offered by RDM Parts with number 808-SOV-04R has an equal thickness and is thus a suitable alternative for the original. The hole spacing of Blade, right model fitting for Muratori 1200015 is measured by the distance between the mounting holes. With these holes the part can be attached to the machine. To get it tightly fit, the distance between the holes on the new part and the old part should be equal. This Blade, right model fitting for Muratori 1200015 808-SOV-04R has a hole spacing of 46 millimeter. The 808-SOV-04R and the original with are mounted with a mounting hole of 14,5 millimeter. These holes are used to mount the Blade, right model fitting for Muratori 1200015 to the machine. Some parts have two or more mounting holes to fix it to the machine.

On what machines does the 808-SOV-04R fit?

the 808-SOV-04R and 1200015 fit on muratori machinery. Use the 808-SOV-04R as a fitting replacement for: Falc F 470301, Muratori 1200015, and Sovema 900111005 - 900111024.
