Blade, left model fitting for Sovema 900111010

Product information "Blade, left model fitting for Sovema 900111010"

900111010 blades for the sovema machine

The 900111010 is a blade for a rotary tiller from sovema. For these machines, RDM Parts has a fitting alternative in the 808-SOV-06L blades.

Mounting the blades

The 900111010 and our fitting alternative 808-SOV-06L are secured in place with a bolt. The rotating direction of the blade should be noticed when attaching them. In case of the 808-SOV-06L and the original counterpart, they are placed at the left side. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

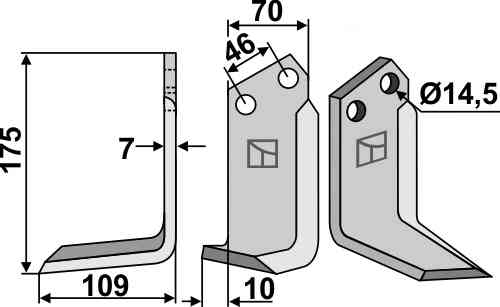

Specifications of the 900111010 and the 808-SOV-06L

The original part for Blade, left model fitting for Sovema 900111010 has a comparable length as our fitting original with number 808-SOV-06L. The length of the part is 175 millimeter and this makes it a fitting alternative for the original. The width of the 808-SOV-06L is equal to the original. The width measures 70 millimeter. The thickness of the Blade, left model fitting for Sovema 900111010 is important for the way the part fits on the machine. The original Blade, left model fitting for Sovema 900111010 from sovema is 7 millimeter thick. The alternative that is offered by RDM Parts with number 808-SOV-06L has an equal thickness and is thus a suitable alternative for the original.

The hole spacing of Blade, left model fitting for Sovema 900111010 is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from sovema. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of this Blade, left model fitting for Sovema 900111010 808-SOV-06L is 46 millimeter. This 808-SOV-06L Blade, left model fitting for Sovema 900111010 has a mounting hole of 14,5 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.

On what machines does the 808-SOV-06L fit?

the 808-SOV-06L and 900111010 fit on sovema machinery. The 808-SOV-06L is fitting for these parts: Müthing MU000507, and Sovema 900111010.

.
Show more Show less

Properties

Product number: 808-SOV-06L
Manufacturer Industriehof
Replaces original
Müthing: MU000507
Sovema: 900111010
Technical details
Suitable for brand: Sovema
Product type: Milling Knife
Bolt hole diameter: 14.5 mm
Boring: 14.5 mm
Hole spacing: 46 mm
Lengte: 175 mm
Material Tickness: 7 mm
Mounting: Left
Thickness: 7 mm
Weight: 0.8 kg
Wideness: 70 mm
Working widt: 109 mm
Show more Show less
