Blade, left model fitting for Valpadana VMC 10-12
| Product number: | 808-VAL-07L |
|---|---|
| Manufacturer | Industriehof |
Replaces original
| Valpadana: | VMC 10-12 |
|---|---|
| Valpadana: | VMC10-12 |
Technical details
| Suitable for brand: | Valpadana |
|---|---|
| Product type: | Milling Knife |
| Bolt hole diameter: | 10.5 mm |
| Boring: | 10.5 mm |
| Hole spacing: | 35 mm |
| Lengte: | 142 mm |
| Material Tickness: | 6 mm |
| Mounting: | Left |
| Thickness: | 6 mm |
| Weight: | 0.34 kg |
| Wideness: | 50 mm |
| Working widt: | 83 mm |
VMC 10-12 blades for the valpadana machine
valpadana tillers use VMC 10-12 tiller blades. If you need an alternative, then you can use the 808-VAL-07L, which is a fitting solution for your tiller.
Mounting the blades
Generally speaking, tiller blades like the VMC 10-12 and 808-VAL-07L are fixed with a bolt. The rotating direction of the blade should be noticed when attaching them. The 808-VAL-07L should therefore be placed on the left side to rotate correctly. Rotating clockwise and counter clockwise, the spinning blades ensure a good ploughing action.

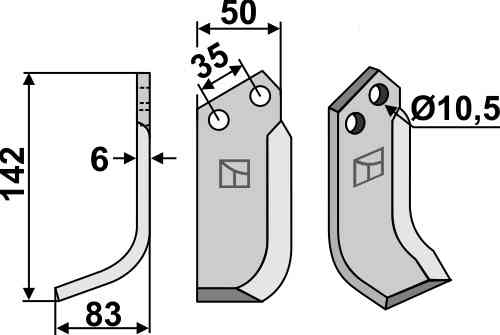

Specifications of the VMC 10-12 and the 808-VAL-07L
The Blade, left model fitting for Valpadana VMC 10-12 from valpadana is just as long as the 808-VAL-07L from RDM Parts. The Blade, left model fitting for Valpadana VMC 10-12 is 142 millimeter long. The original and the part from RDM Parts 808-VAL-07L are equal in width. This Blade, left model fitting for Valpadana VMC 10-12 is 50 millimeter in width. In a general sense you can assume that a thicker product is better able to cope with wear and tear. The Blade, left model fitting for Valpadana VMC 10-12 with part number 808-VAL-07L has a thickness of 6 millimeter. The part can be replaced with the parts from RDM Parts because it has a comparable thickness.
The hole spacing measures the distance between the two mounting holes on the Blade, left model fitting for Valpadana VMC 10-12. With these holes the part can be attached to the machine. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-VAL-07L from RDM Parts is equal to the original with number VMC 10-12 and the distance measures 35 millimeter. The 808-VAL-07L and the original with are mounted with a mounting hole of 10,5 millimeter. The mounting holes help to make a connection between the part and the machine. For some parts there are multiple mounting holes to mount the part.On what machines does the 808-VAL-07L fit?
Like the original with number VMC 10-12, the 808-VAL-07L Blade, left model fitting for Valpadana VMC 10-12 fits on the machines of valpadana. Use the 808-VAL-07L as a fitting replacement for: Valpadana VMC 10-12.
