Blade, right model fitting for Valpadana VMC 8

VMC 8 blades for the valpadana machine

valpadana tillers use VMC 8 tiller blades. Also RDM Parts has spare parts available for these machines, like the part that is seen above 808-VAL-11R, which is comparable with the original.

Mounting the blades

Tiller blades are fastened with a bolt. Tiller blades have a set direction to turn because of the placement of the blades edge. The 808-VAL-11R should therefore be placed on the right side to rotate correctly. Because of the alternating way the blades are placed on the machine, the ploughing is optimised.

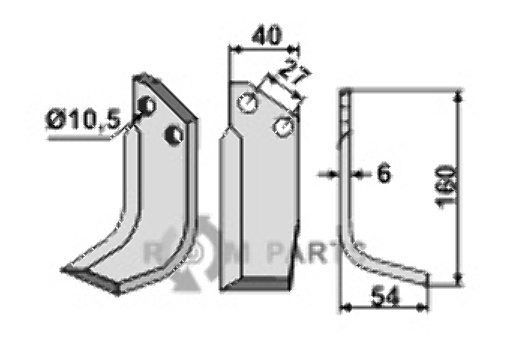

Specifications of the VMC 8 and the 808-VAL-11R

RDM Parts also has the 808-VAL-11R Blade, right model fitting for Valpadana VMC 8 with an equal length as the original. The product is thus 160 millimeter long and is a fitting replacement for your machinery. The width of the 808-VAL-11R is equal to the original. The parts is equal in width, 40 millimeter to be exact. In a general sense you can assume that a thicker product is better able to cope with wear and tear. 6 millimeter thick is the Blade, right model fitting for Valpadana VMC 8 from valpadana with the original part number VMC 8. The part can be replaced with the parts from RDM Parts because it has a comparable thickness. The hole spacing of Blade, right model fitting for Valpadana VMC 8 is measured by the distance between the mounting holes. With these mounting holes the part can be attached to the machine from valpadana. The distance has to correspond with the replacement part else it won’t fit for the machine that it has to be mounted on. The hole spacing of the 808-VAL-11R from RDM Parts is equal to the original with number VMC 8 and the distance measures 27 millimeter. The 808-VAL-11R and the original with are mounted with a mounting hole of 10,5 millimeter. With a bolt the part is attached through the mounting hole to the machine. Some of the parts have more than one mounting hole to mount it to the machine.

On what machines does the 808-VAL-11R fit?

the 808-VAL-11R and VMC 8 fit on valpadana machinery. The 808-VAL-11R is fitting for these parts: Maschio F01010082, and Valpadana VMC 8.
