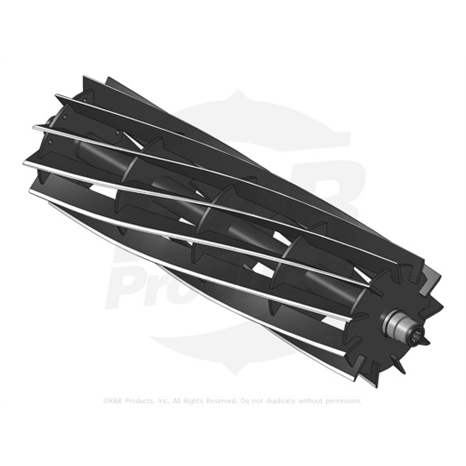

Reel - 11 blade 22x7

Product information "Reel - 11 blade 22x7"

The R108-9074 reels fit on the mowers from Toro and replace the original parts with number . The kind of mower is mainly used for very precise cutting on the sports or golfcourse and in public green spaces. This is due to the even mowing result of the reel and the ability to cut the grass exactly down to the millimetre.

A series of knives that go round a cylinder, that’s the most basic explanation one can give about a mowing reel. In the case of the R108-9074 the reel has 11 blades on the cylinder. The grass is caught between the blades on the cillinder and the sweeping motion cuts the grass on the bedknife. A requirement for this is that the knife edges on either side are very sharp. A dull blade tears the grass, damaging it in the process.

Reels R108-9074 worn down?

A worn down reel? A reel is not instantly worn out when it is dull. These can be sharpened in a simple manner. When the diameter of the reel is to small for the cutting unit, the mowing result is and stays bad after cutting and can no longer be correctly adjusted, only then you have a worn down reel.

Original Toro 108-9074?

This part R108-9074 replaces the original of Toro with the original number of 108-9074. RDM Parts parts are interesting due to the good quality that is offered for a lesser price than the original.

Ordering reels R108-9074 for replacing

When replacing your reel you have to check some things:

  1. Do you have the right parts number? Check the parts manual of your machine to select the right part number.
  2. Do you miss the part number or are you in doubt? Contact us, , we like to help you.
  3. When replacing the reel it is important to also replacing the reel it is important to also replace the bedknife and the bearings with the seal.
Show more Show less

Properties

Product number: R108-9074
Manufacturer R&R Products
Replaces original
Toro: 108-9074
Technical details
Suitable for brand: Toro
Suitable for machine: R&R Products Reel Max 744D, Toro Reelmaster 5410-D, Toro Reelmaster 5510-D, Toro Reelmaster 5510-G, Toro Reelmaster 5610-D, Toro Reelmaster 6500D, Toro Reelmaster 6700D
Product type: Cutting cages
Number of reelblades: 11
Weight: 1 kg
